阿普奇 AK7xxxA2 | 6~9th酷睿桌面級 雙網口6USB 支持多層擴展 彈匣式控制器
產品描述
阿普奇 AK7xxxA2 是AK7系列彈匣式高性能控制器中的桌面CPU平臺型號。AK7系列是阿普奇彈匣式控制器中的高性能桌面級產品線，采用標準LGA1151接口桌面處理器，相比AK6的移動-U系列在持續計算性能和用戶自主升級方面有本質優勢。
核心平臺：Intel 6-9代酷睿i3/i5/i7桌面處理器（LGA1151插槽, 用戶可更換），最高65-95W TDP——相比AK6的15-28W移動-U，桌面級CPU的多核持續性能大幅領先，適合長時間高負載的視覺處理和數據分析場景。內存2×DDR4 SO-DIMM雙通道2666MHz（64GB）。
圖形：Intel HD Graphics 530（6/7代）或UHD Graphics 630（8/9代），性能低于AK6的Iris Xe但滿足顯示和輕量圖像處理需求。AK7的定位優勢不在集成顯卡，而在桌面CPU的持續算力和擴展性。
網絡：2×i210-AT + 2×i219-LM——注意PDF中存在兩個SKU版本，標準I/O均為2路千兆（i210+i219）。視具體SKU選擇。
存儲是AK7的亮點：雙M.2插槽——1×M.2 Key-M（PCIe x4 Gen3 + SATA3.0, NVMe/SATA自適應, 2280）+ 1×M.2 Key-M（SATA3.0, 2280）。系統盤NVMe高速啟動+數據盤SATA獨立存儲——在彈匣式控制器中實現企業級雙盤方案。
擴展：3×Mini PCIe插槽（2路含SIM卡槽, 支持WiFi/BT/4G/CAN+ 1路無SIM），是AK6系列（2路）的1.5倍。USB提供兩種配置（6×USB3.0或4×USB3.0+2×USB2.0）。DP+HDMI+VGA三顯，2×RS232/485，內置USB2.0加密狗。DC 12-28V寬壓（使用光源/PoE時必須24V），彈匣多層擴展可選。
桌面CPU高持續性能+雙M.2+3×Mini PCIe+彈匣擴展，使AK7xxxA2成為面向需要持續高性能計算和高度自定義擴展的工業視覺和邊緣計算場景。
|
Model |
AK7170A2 |
AK7110A2 |
|
|
CPU |
CPU | Intel??6~9th?Generation CoreTM?Desktop Processor | |
| ? | TDP | 65W | |
| ? | Socket | LGA1151 | |
|
Chipset |
Chipset | Intel??Q170 | Intel??H110 |
|
BIOS |
BIOS | AMI UEFI BIOS | |
|
Memory |
Socket | 2 * SO-DIMM Slot, Dual Channel DDR4 up to 2666MHz | |
| ? | Max Capacity | 32GB, Single Max. 16GB | |
|
Graphics |
Controller | Intel??HD Graphics530/Intel??UHD Graphics 630(Dependent on CPU) | |
|
Ethernet |
Controller | 1 * Intel??i210-AT GbE LAN Chip (10/100/1000 Mbps) 1 * Intel??i219-LM GbE LAN Chip (10/100/1000 Mbps) |
1 * Intel??i210-AT GbE LAN Chip (10/100/1000 Mbps) 1 * Intel??i219-LM GbE LAN Chip (10/100/1000 Mbps) |
|
Storage |
M.2 | 1 * M.2 Key-M (PCIe x4 Gen 3 + SATA3.0, NVMe/SATA SSD Auto Detect, 2280) | 1 * M.2 Key-M (SATA3.0, 2280) |
|
Expansion |
Mini PCIe | 1 * Mini PCIe (PCIe x1 Gen 2 + USB 2.0) 1 * Mini PCIe (PCIe x1 Gen 2 + USB 2.0, with SIM card slot) |
1 * Mini PCIe (PCIe x1 Gen 2 + USB 2.0, with SIM card slot) |

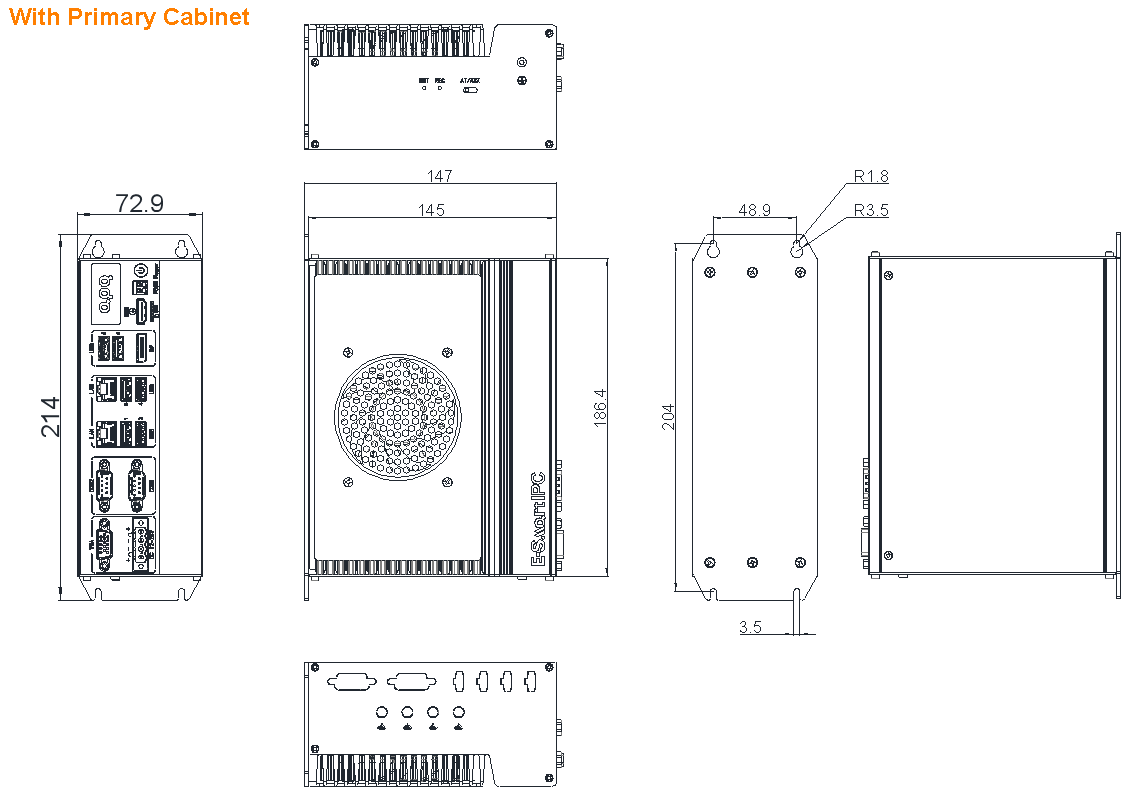

| ? | Optional Primary Cabinet | 1A/1B/1C/1D/1E/2A/3A | 1E |

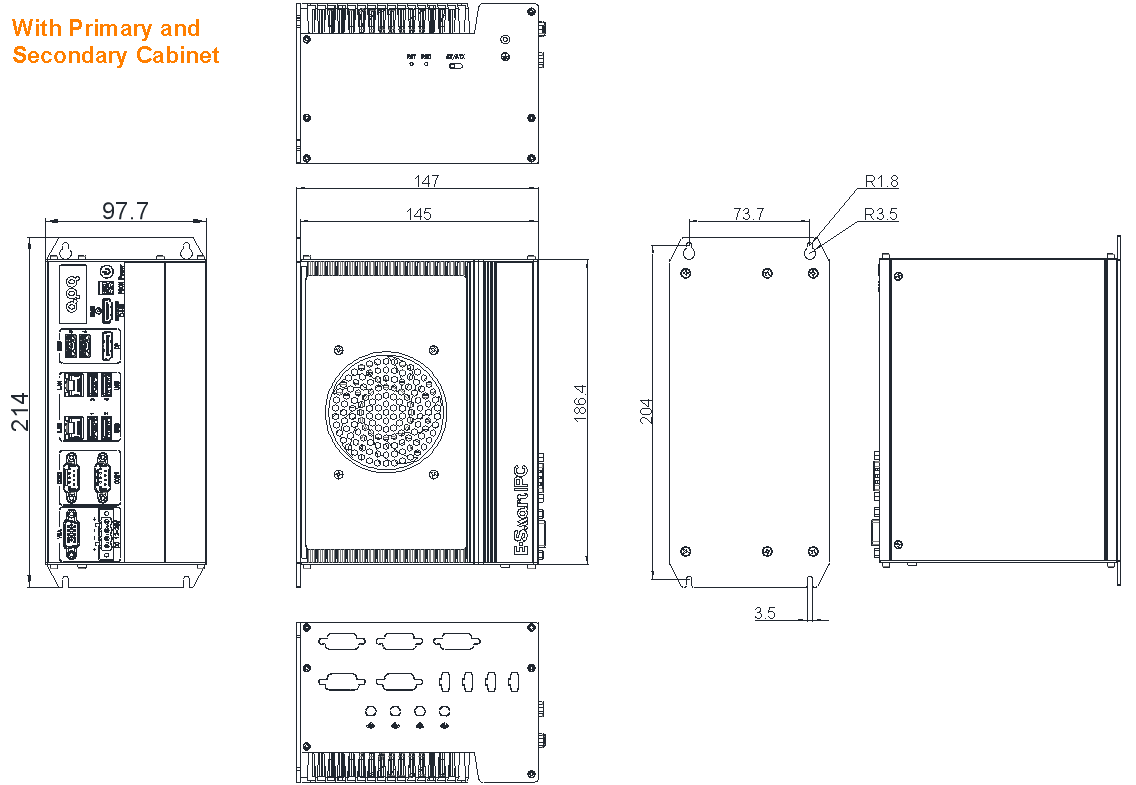

| ? | Optional Secondary Cabinet | 1E | 1E |
|

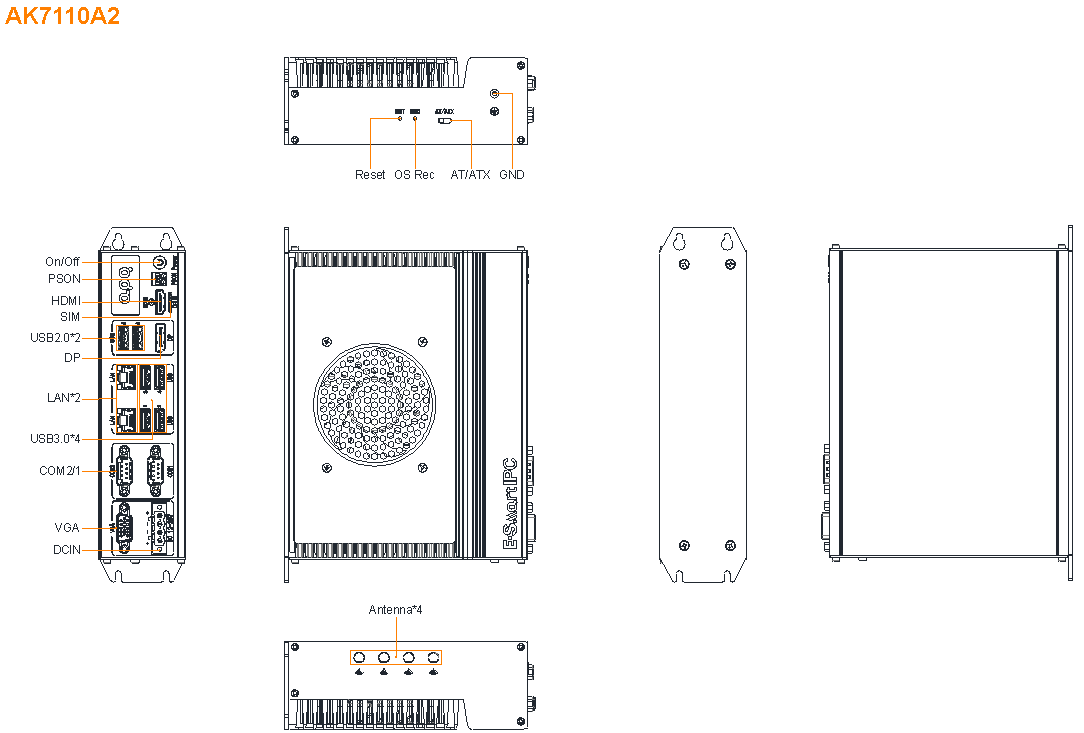

Front I/O |
USB | 6 * USB3.0 (Type-A) | 4?* USB3.0 (Type-A) 2 * USB2.0 (Type-A) |
| ? | Serial | 2 * RS232/485 (COM1/2, DB9/M, Full lanes) | |
| ? | Display | 1 * HDMI: max resolution up to 4096*2304 @ 24Hz 1 * DP: max resolution up to 4096*2160 @ 60Hz 1 * VGA: max resolution up to 1920*1200 @ 60Hz |
|
| ? | Ethernet | 2 * RJ45 | |
| ? | Power | 1 * DC Power Input | |
| ? | SIM | 1 * Nano SIM Card slot (Mini PCIe module provide functional support) | |
| ? | Button | 1 * Power Button + Power LED 1 * PS_ON Connector |
|
|

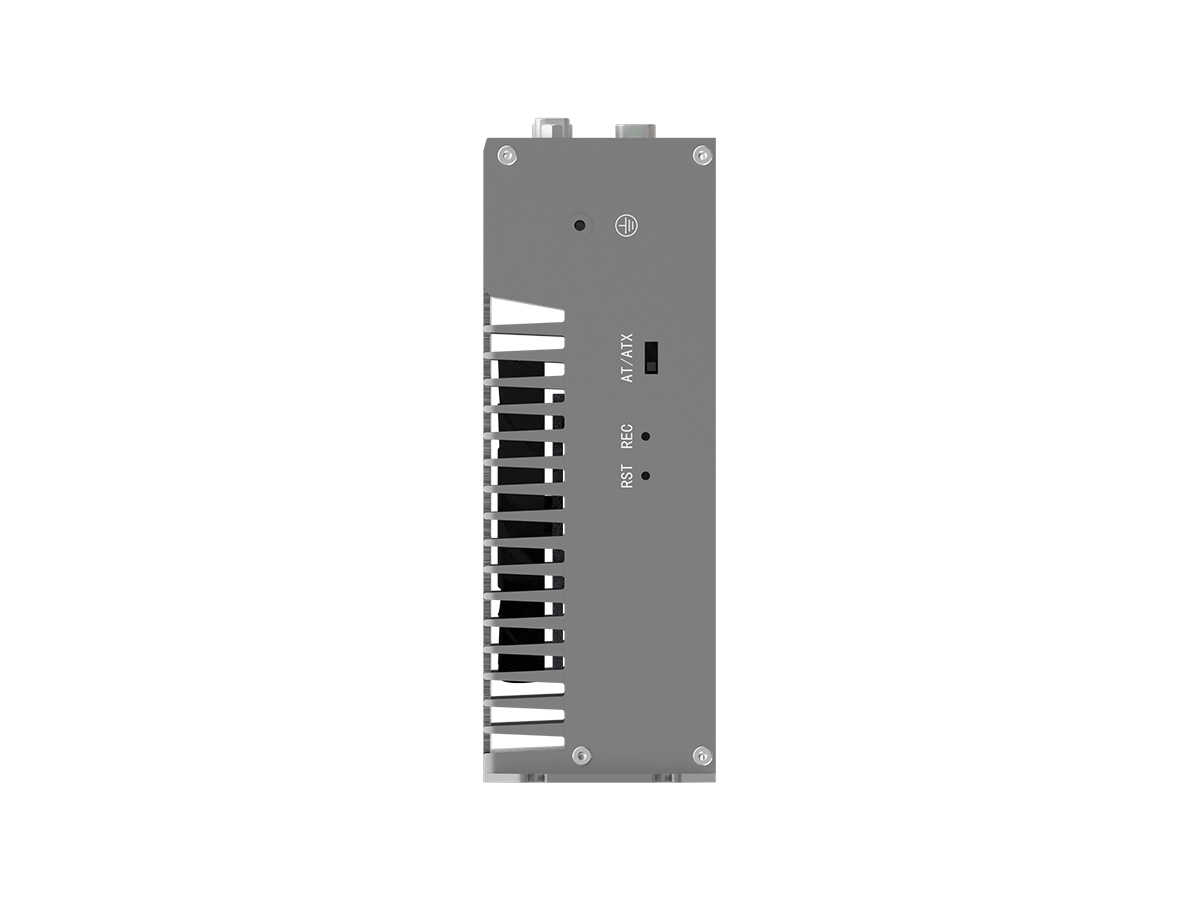

Bottom I/O |
Switch | 1 * AT/ATX Mode Switch (Enable/Disable automatically power on) | |
| ? | Button | 1 * Reset (Hold down 0.2 to 1s to restart, 3s to clear CMOS) 1 * OS Rec (system recovery) |
|
|
Power Supply |
Type | DC | |
| ? | Power Input Voltage | 12 ~ 28VDC Note：When using the light source?and POE, 24V input must be used. |
|
| ? | Connector | 1 * 4Pin Power Input Connector (P= 5.08mm) | |
| ? | RTC Battery | CR2032 Coin Cell | |
|
OS Support |
Windows | 6/7th Core?: Windows 7/10 8/9th Core?: Windows 10 |
|
| ? | Linux | Linux | |
|
Watchdog |
Output | System Reset | |
| ? | Interval | Programmable via Software from 1 to 255 sec | |
|
Mechanical |
Enclosure Material | Radiator/Box: Aluminum alloy, Top/Bottom Cover: SGCC | |

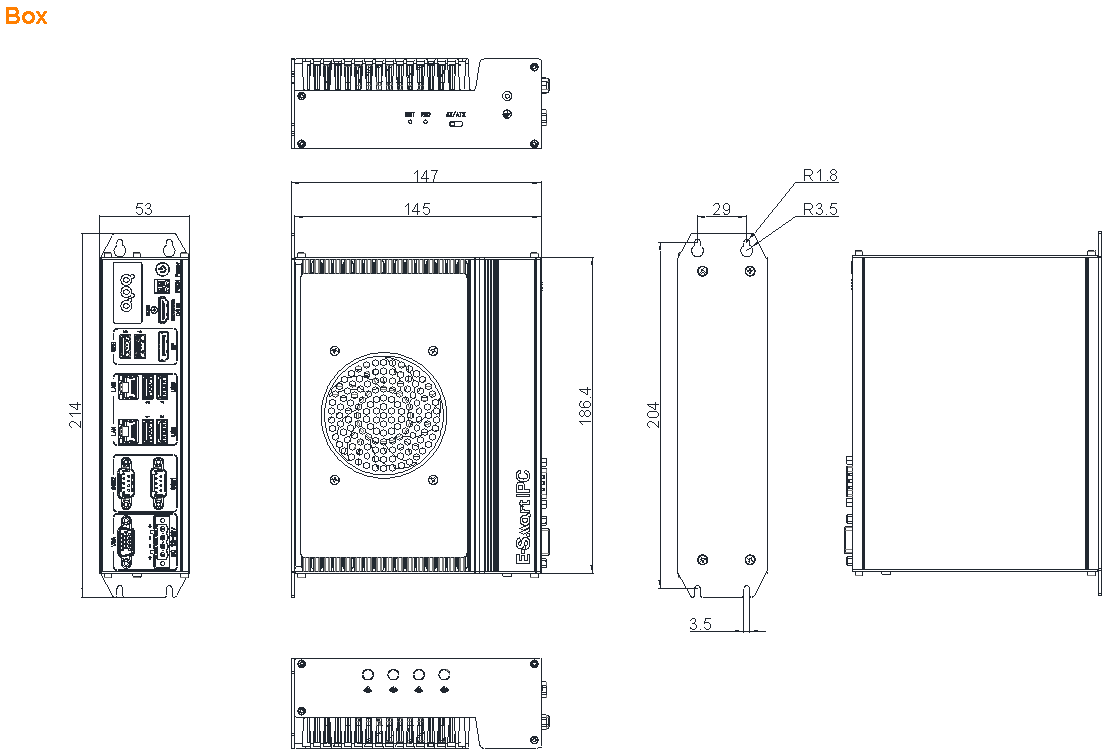

| ? | Dimensions | 53mm(L) * 145mm(W) * 186.4mm(H) | |

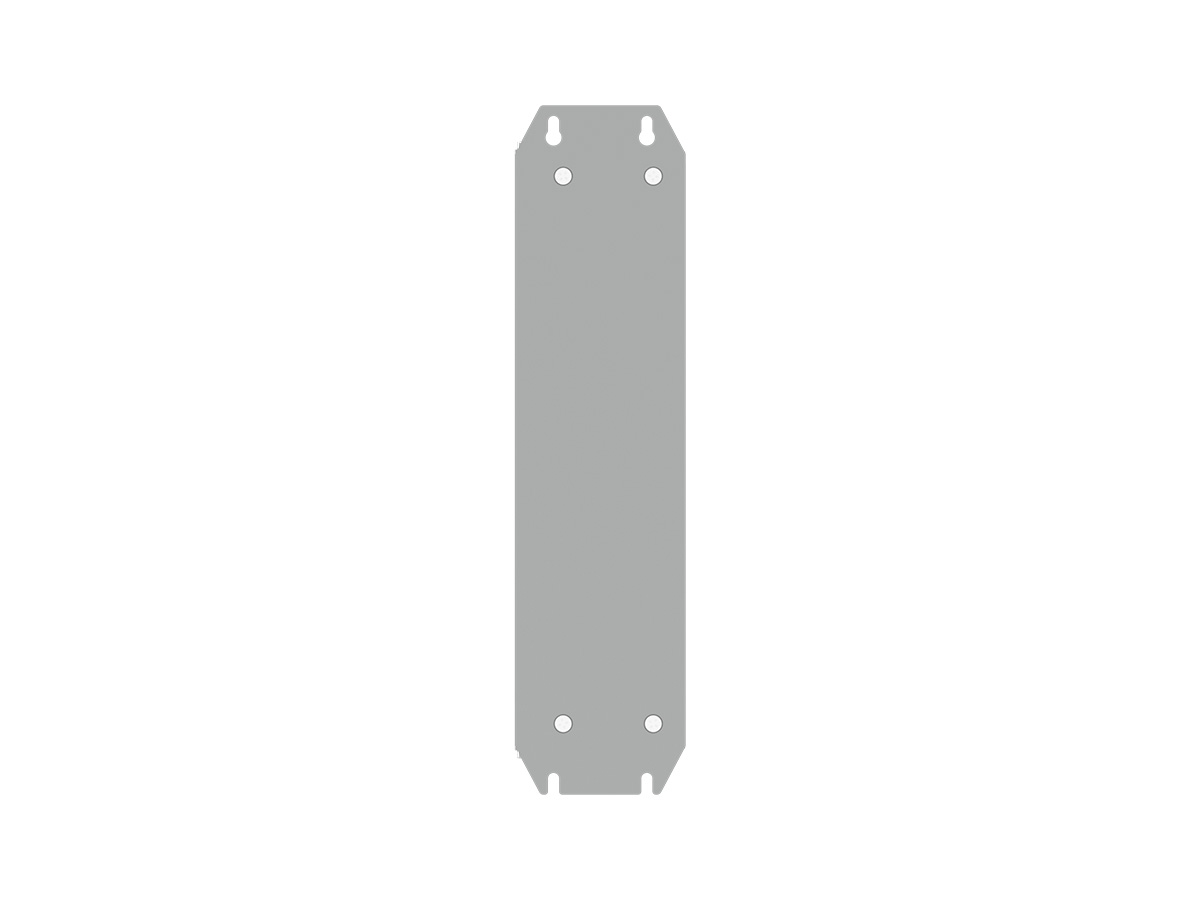

| ? | Mounting | Wall mounted, DIN, Desktop | |
|
Environment |
Heat Dissipation System | PWM Air Cooling | |
| ? | Operating Temperature | -20~60℃?(Industrial SSD) | |
| ? | Storage Temperature | -40~80℃?(Industrial SSD) | |
| ? | Relative Humidity | 5 to 90% RH (non-condensing) | |
| ? | Vibration During Operation | With SSD: IEC 60068-2-64 (3Grms@5~500Hz, random, 1hr/axis) | |
| ? | Shock During Operation | With SSD: IEC 60068-2-27 (30G, half sine, 11ms) | |
-
