阿普奇 ATT-Q470 工業主板 / ATX主板
產品描述
阿普奇ATX工業主板ATT-Q470支持Intel? 10th和11th Gen Core/Pentium/Celeron處理器，能夠提供高效的處理能力，滿足各種工業控制和自動化需求。其TDP（熱設計功率）高達125W，確保在高負荷運行時仍能保持穩定的性能。主板采用Intel? Q470芯片組，與最新的處理器技術兼容，并具備優秀的穩定性和擴展性。該主板配備了四個DDR4-2933MHz內存插槽，最高支持128GB內存，為大數據處理和多任務操作提供了充足的內存資源。
在網絡連接方面，ATT-Q470板載2個Intel千兆網卡，確保高速、穩定的網絡傳輸。此外，主板還默認配備了2個RS232/422/485和4個RS232串口，方便連接各種工業設備和傳感器。ATT-Q470在擴展性方面表現出色，板載6個USB3.2和6個USB2.0接口，滿足各種USB設備連接需求。它還提供了HDMI、DP、VGA和eDP顯示接口，支持多種顯示器連接，最高支持4K@60Hz分辨率，為用戶帶來清晰、流暢的視覺體驗。在擴展插槽方面，ATT-Q470擁有2個PCIe x16、3個PCIe x4和2個PCI插槽，方便擴展各種PCI/PCIe設備。
| Model | ATT-Q470 | |
| ProcessorSystem | CPU | Support Intel??10/11th Generation Core / Pentium/ Celeron Desktop CPU |
| TDP | 125W | |
| Socket | LGA1200 | |
| Chipset | Q470 | |
| BIOS | AMI 256 Mbit SPI | |
| Memory | Socket | 4 * Non-ECC U-DIMM Slot, Dual Channel DDR4 up to 2933MHz |
| Capacity | 128GB,?Single Max. 32GB | |
| Graphics | Controller | Intel??UHD Graphics |
| Ethernet | Controller | 1 * Intel i210-AT GbE LAN Chip (10/100/1000 Mbps)?1 * Intel i219-LM/V GbE LAN Chip (10/100/1000 Mbps) |
| Storage | SATA | 4 * SATA3.0 7P Connector, up to 600MB/s, Support?RAID?0, 1, 5, 10 |
| M.2 | 1 * M.2 Key-M (PCIe x4 Gen 3 + SATA3.0, NVMe/SATA SSD Auto Detect, 2242/2260/2280) | |
| Expansion Slots | PCIe slot | 2 * PCIe x16 slot (Gen 3, x16 /NA signal or Gen 3, x8 /x8 signal)3 * PCIe x4 slot (Gen 3, x4 signal) |
| PCI | 2 * PCI slot | |
| Mini PCIe | 1 * Mini PCIe (PCIe x1 Gen 3 + USB 2.0, with 1 * SIM Card) | |
| Rear I/O | Ethernet | 2 * RJ45 |
| USB | 2 * USB3.2 Gen 2x1 (Type-A, 10Gbps,?Each group of two ports Max. 3A, one port Max. 2.5A)4 * USB3.2 Gen 1x1 (Type-A, 5Gbps,?Each group of two ports Max. 3A, one port Max. 2.5A)
2?* USB 2.0 (Type-A) |
|
| Display | 1 * DP1.4: max resolution up to 3840*2160 @ 60Hz1 * HDMI1.4: max resolution up to 3840*2160 @ 30Hz | |
| Audio | 3 * 3.5mm Jack (Line-out + Line-in + MIC) | |
| Serial | 2 * RS232/422/485 (COM1/2, DB9/M, Full Lanes, BIOS Switch) | |
| Internal I/O | USB | 1 * USB2.0 (Vertical Type-A)4 * USB2.0 (Header) |
| Display | 1 * VGA: max resolution up to 1920*1200 @ 60Hz (wafer)1 * eDP: max resolution up to 1920*1200 @ 60Hz (Header) | |
| Audio | 1 * Front Audio (Line-Out + MIC, Header)1 * Speaker (3W (per channel) into a 4Ω Loads, wafer) | |
| Serial | 4 * RS232 (COM3/4/5/6, Header, Full Lanes) | |
| GPIO | 1 * 16 bits DIO (8xDI and 8xDO, wafer) | |
| PS/2 | 1 * PS/2 (Keyboard & Mouse, wafer) | |
| LPT | 1 * LPT (Header) | |
| SMBus | 1 * SMBus (wafer) | |
| SATA | 4 * SATA3.0 7P Connector | |
| FAN | 1 * CPU FAN (Header)2 * SYS FAN (Header) | |
| Front Panel | 1 * Front Panel (Header) | |
| Power Supply | Type | ATX |
| Connector | 1 * 8P 12V Power (Header)1 * 24P Power (Header) | |
| OS Support | Windows | Windows 10/11 |
| Linux | Linux | |
| Watchdog | Output | System Reset |
| Interval | Programmable 1 ~ 255 sec | |

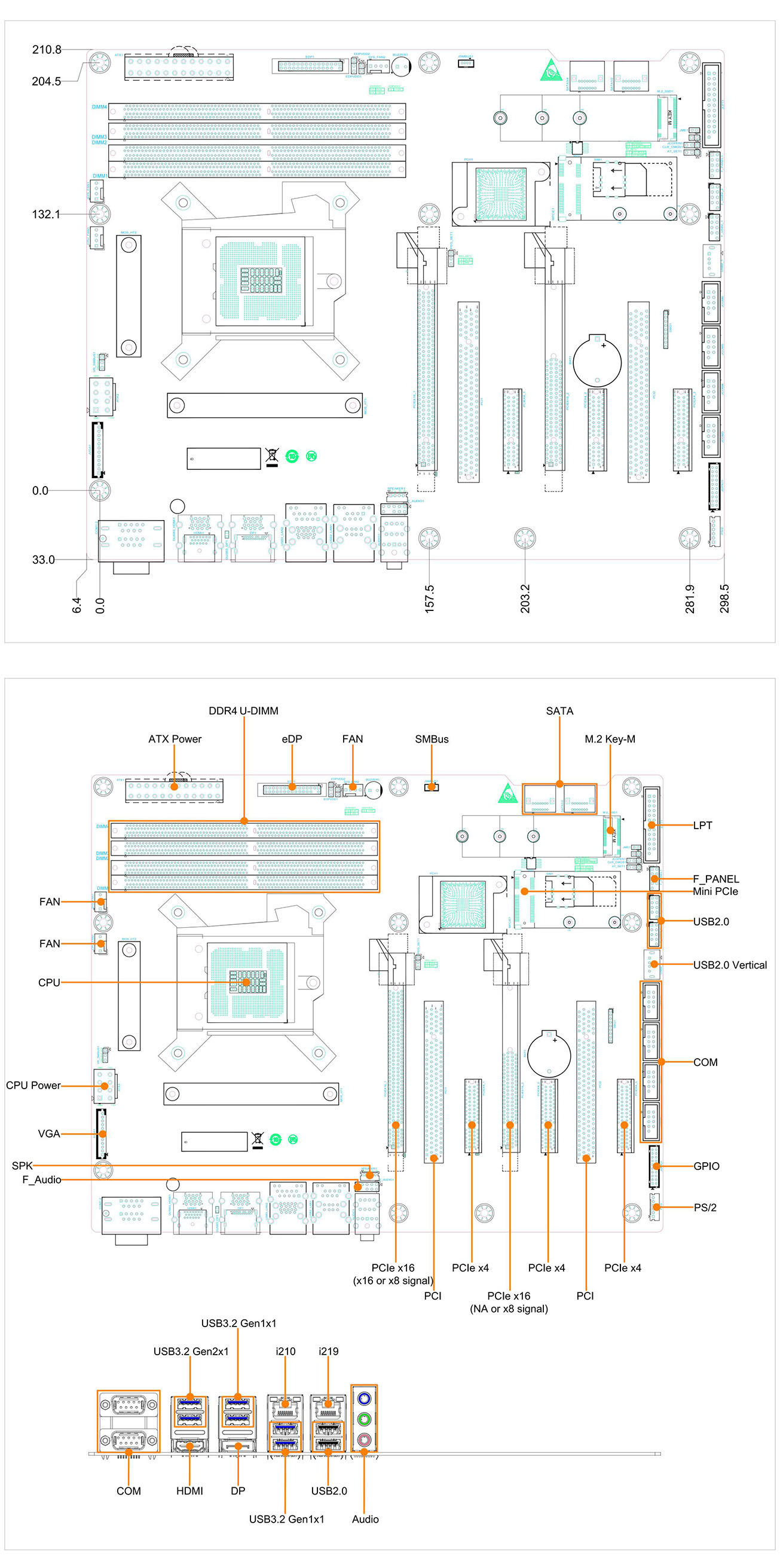

| Mechanical | Dimensions | 304.8 x 243.8 mm (12" x 9.6") |
| Environment | Operating Temperature | -20 ~ 60℃ (Industrial SSD) |
| Storage Temperature | -40 ~ 80℃ (Industrial SSD) | |
| Relative Humidity | 10 to 95% RH (non-condensing) | |
-
