阿普奇 IPC400-Q470 | 10/11th 4內存插槽 雙USB 10Gbps 4U機架式工控機
產品描述

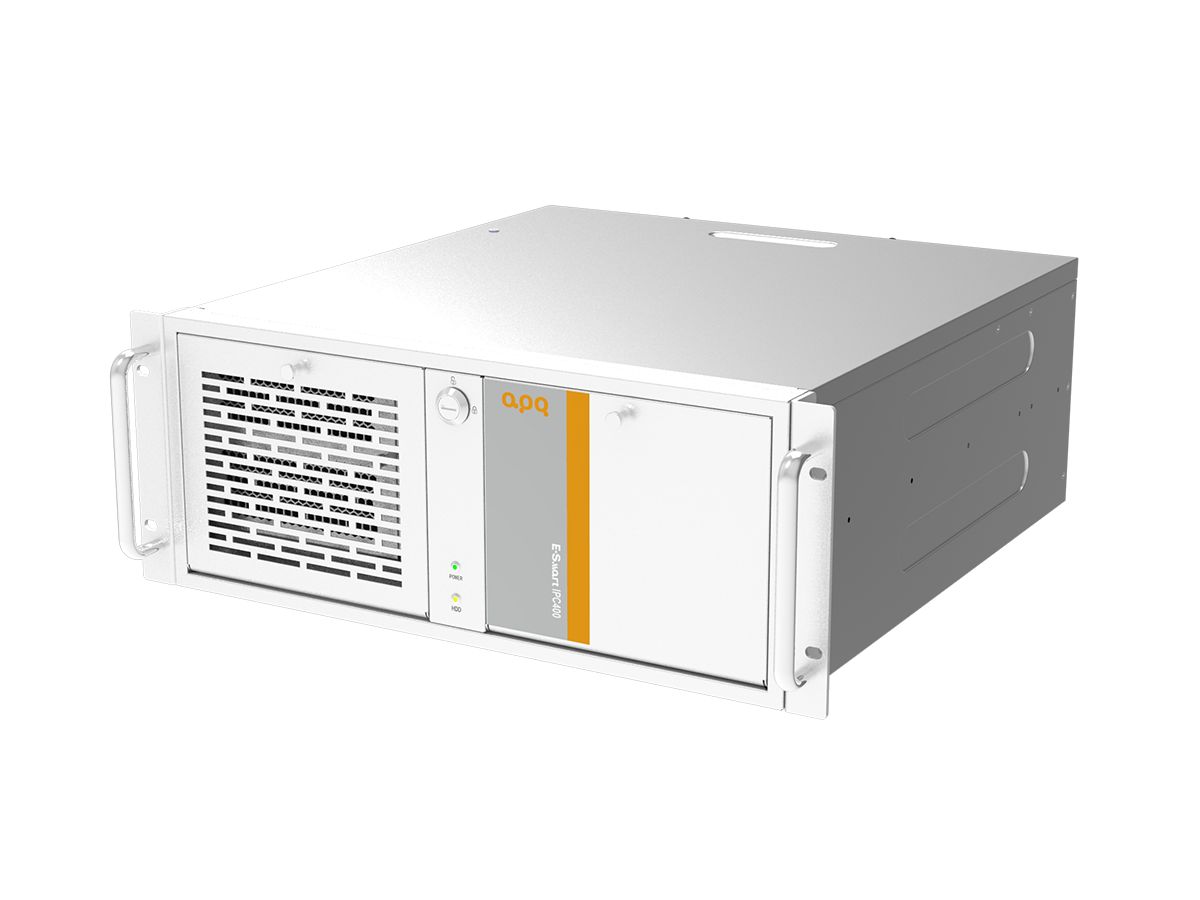

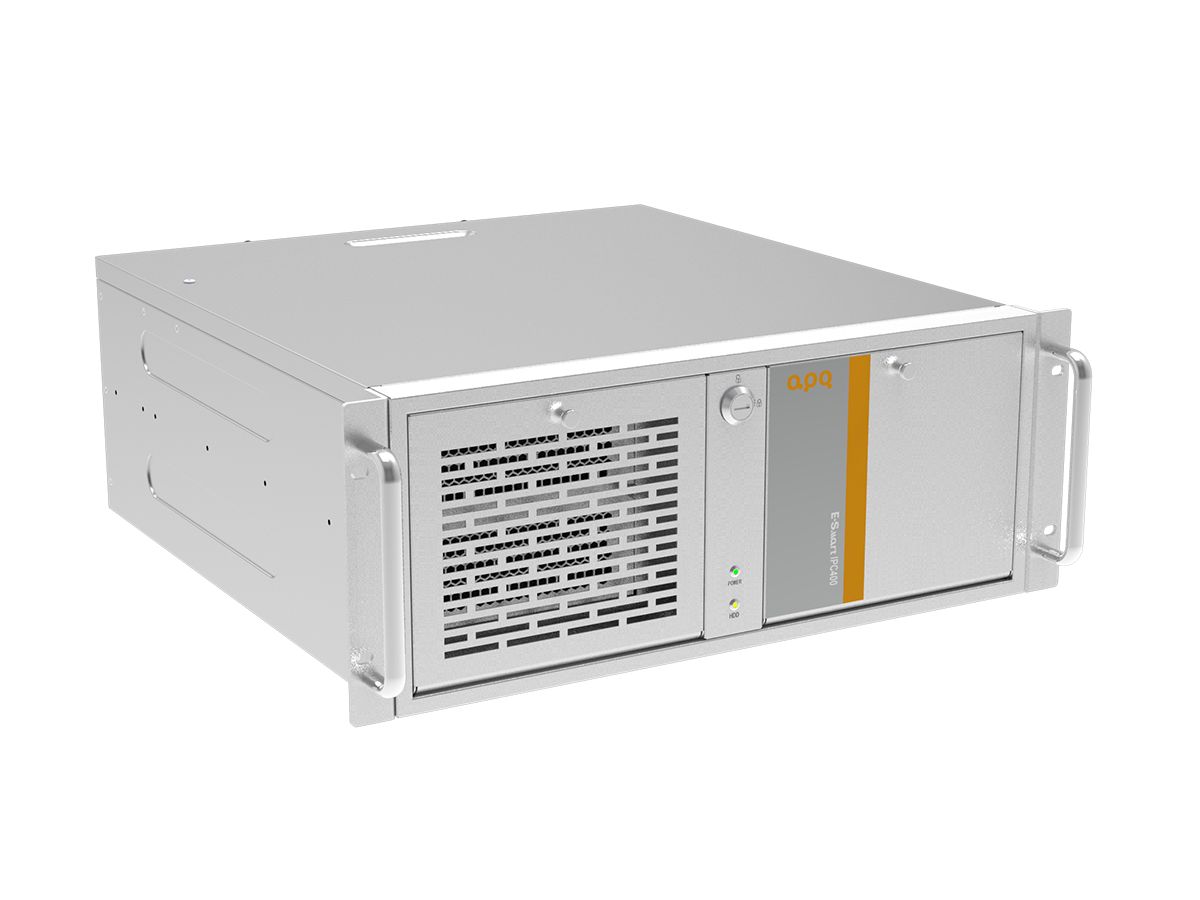

阿普奇 IPC400-Q470 是IPC400系列中的Q470企業級平臺高性能型號。隸屬于阿普奇上架式工控機產品線（IPC400系列），采用標準19英寸4U機架式機箱，全高卡擴展設計。
核心配置方面，搭載Intel 10/11代酷睿桌面處理器（TDP 125W, LGA1200），搭配企業級Intel Q470芯片組。內存方面提供4×Non-ECC U-DIMM DDR4雙通道2933MHz，最大128GB（單條32GB），4個內存插槽為多任務并行和虛擬化預留了充足的擴展空間。網絡方面配備1×Intel i210-AT + 1×Intel i219-LM/V雙千兆網口。
存儲系統具備企業級RAID能力：4×SATA3.0接口通過Q470芯片組支持硬件RAID 0/1/5/10。另配備1×M.2 Key-M（PCIe Gen3 x4 + SATA3.0, NVMe/SATA自適應, 2242/2260/2280）。
擴展方面提供2×PCIe x16（Gen3, 支持x16或x8/x8靈活分配）+ 3×PCIe x4（Gen3 x4）+ 2×PCI + Mini PCIe共7個全高槽位。后置I/O是亮點：2×USB3.2 Gen2x1（10Gbps）高速接口 + 4×USB3.2 Gen1x1（5Gbps），DP1.4支持4K@60Hz + HDMI1.4 4K@30Hz + VGA三路顯示。內置3W揚聲器、eDP顯示、SMBus和PS/2 wafer接口，滿足各種工業場景的定制化需求。
|
Model |
IPC400-Q470 |
|
|
Processor System |
CPU | Support Intel??10/11th Generation Core / Pentium/ Celeron Desktop CPU |
| TDP | 125W | |
| Socket | LGA1200 | |
| Chipset | Q470 | |
| BIOS | AMI 256 Mbit SPI | |
|
Memory |
Socket | 4 * Non-ECC U-DIMM Slot, Dual Channel DDR4 up to 2933MHz |
| Capacity | 128GB, Single Max. 32GB | |
|
Graphics |
Controller | Intel? UHD Graphics |
|
Ethernet |
Controller | 1 * Intel i210-AT GbE LAN Chip (10/100/1000 Mbps, RJ45)1 * Intel i219-LM/V GbE LAN Chip (10/100/1000 Mbps, RJ45) |
|
Storage |
SATA | 4 * SATA3.0 7P Connector, Support RAID 0, 1, 5, 10 |
| M.2 | 1 * M.2 Key-M (PCIe x4 Gen?3 + SATA3.0, NVMe/SATA SSD Auto Detect, 2242/2260/2280) | |
|
Expansion Slots |
PCIe | 2 * PCIe x16 slot (Gen 3, x16 /NA signal or Gen 3, x8 /x8 signal)3 * PCIe x4 slot (Gen 3, x4 signal) |
| PCI | 2 * PCI slot | |
| Mini PCIe | 1 * Mini PCIe (PCIe x1 Gen 3 + USB 2.0, with 1 * SIM Card) | |
|
Front I/O |
Ethernet | 2 * RJ45 |
| USB | 2 * USB3.2 Gen?2x1 (Type-A)4 * USB3.2 Gen?1x1 (Type-A)
2 * USB2.0 (Type-A) |
|
| Display | 1 * DP1.4: max resolution up to 3840*2160 @ 60Hz 1 * HDMI1.4: max resolution up to 3840*2160 @ 30Hz |
|
| Audio | 3 * 3.5mm Jack (Line-out + Line-in + MIC) | |
| Serial | 2 * RS232/422/485 (COM1/2, DB9/M, Full Lanes, BIOS Switch) | |
|

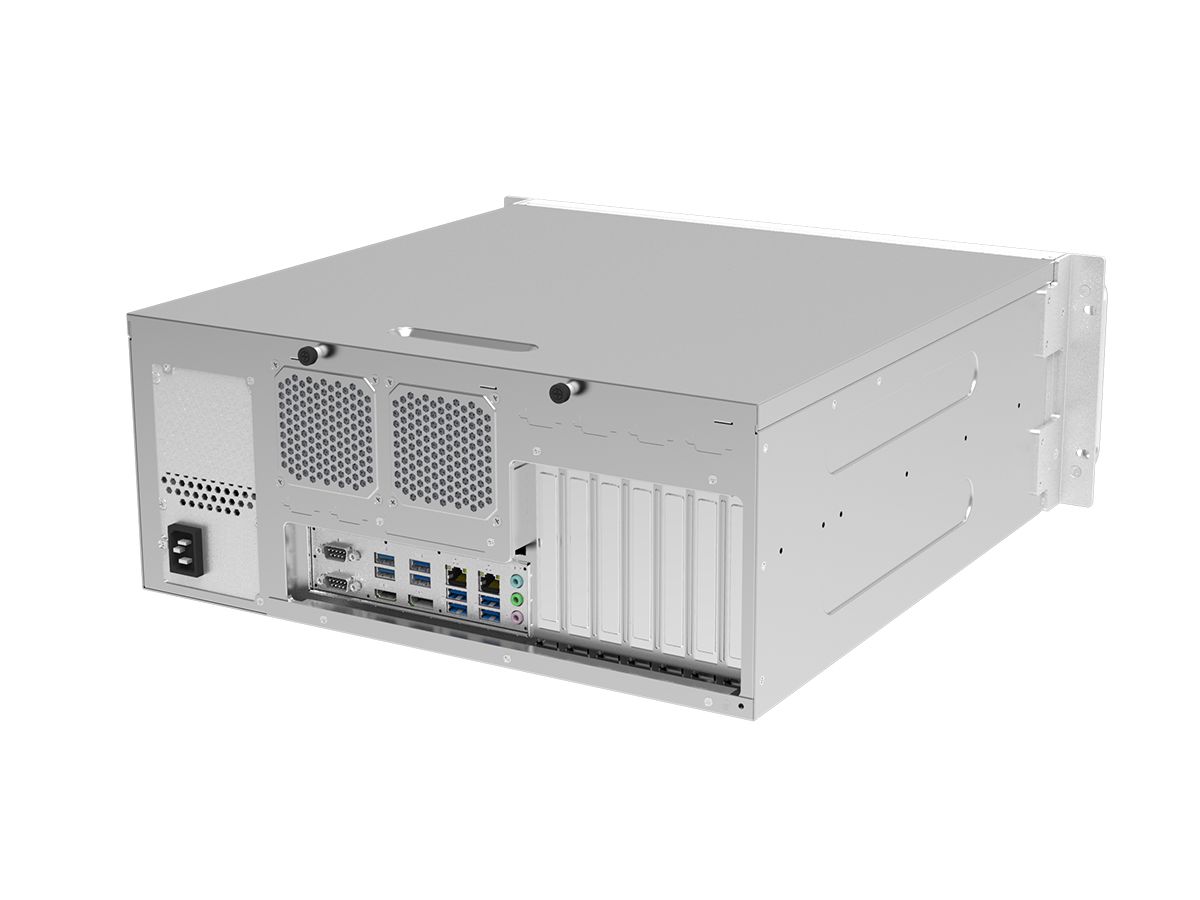

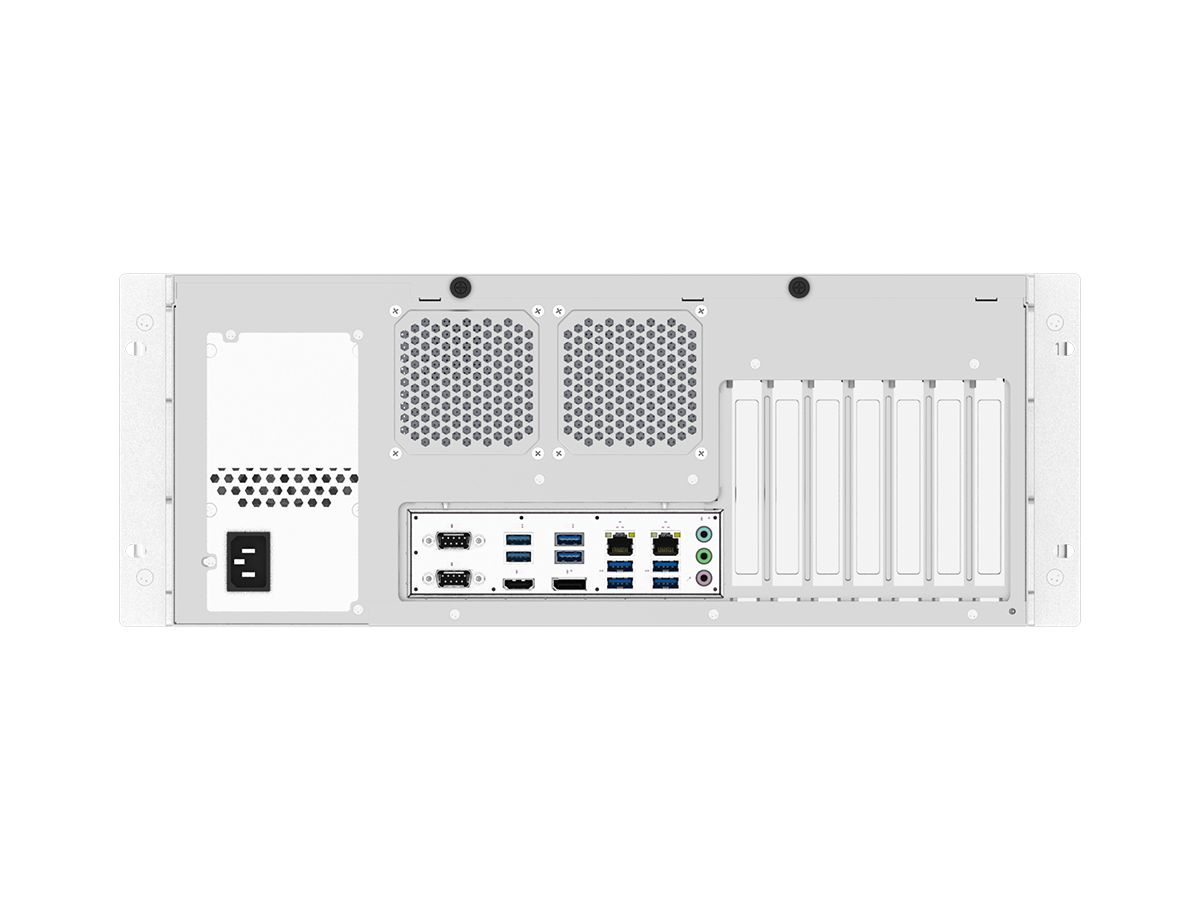

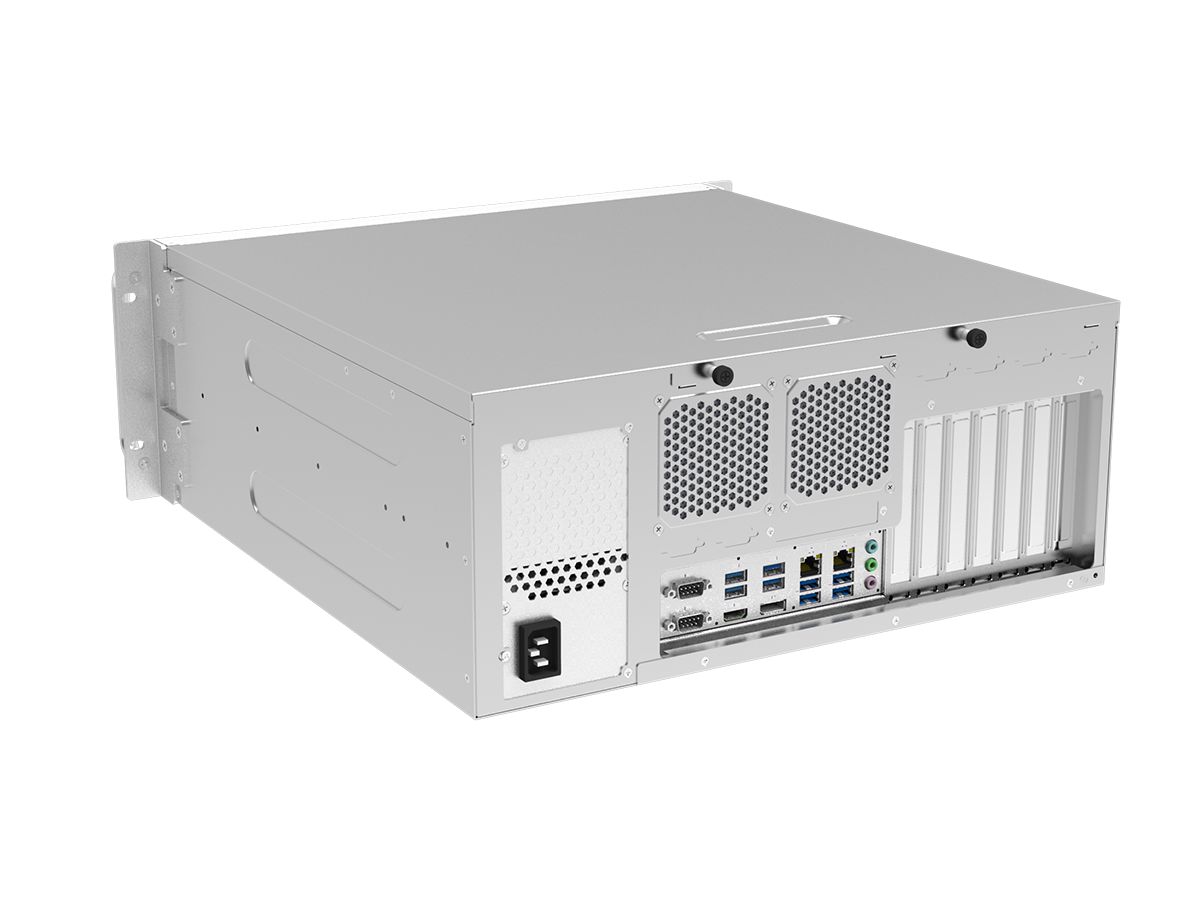

Rear I/O |
USB | 2 * USB2.0 (Type-A) |
| Button | 1 * Power Button | |
| LED | 1 * Power status LED1 * Hard drive status LED | |
|
Internal I/O |
USB | 1 * USB2.0 (Vertical TYEP-A)2 * USB2.0 (Header) |
| COM | 4 * RS232 (COM3/4/5/6, Header, Full Lanes) | |
| Display | 1 * VGA: max resolution up to 1920*1200 @ 60Hz (wafer)1 * eDP: max resolution up to 1920*1200 @ 60Hz (Header) | |
| Audio | 1 * Front Audio (Line-Out + MIC, Header)1 * Speaker (3W (per channel) into a 4Ω Loads, wafer) | |
| GPIO | 1 * 16 bits DIO (8DI and 8DO, wafer) | |
| SATA | 4 * SATA 7P Connector | |
| LPT | 1 * LPT (Header) | |
| PS/2 | 1 * PS/2 (wafer) | |
| SMBus | 1 * SMBus (wafer) | |
| FAN | 2 * SYS FAN (Header)1 * CPU FAN (Header) | |
|
Power Supply |
Type | ATX |
| Power Input Voltage | AC power supply, voltage and frequency shall be based on the ATX power supply provided | |
| RTC Battery | CR2032 Coin Cell | |
|
OS Support |
Windows | Windows 10/11 |
| Linux | Linux | |
|
Watchdog |
Output | System Reset |
| Interval | Programmable 1 ~ 255 sec | |
|
Mechanical |
Enclosure Material | SGCC |
| Dimensions | 482.6mm(L) * 464.5mm(W) * 177mm(H) | |
| Mounting | Shelf mounted installation | |
|
Environment |
Heat Dissipation System | PWM fan cooling |
| Operating Temperature | 0 ~ 50℃ | |
| Storage Temperature | -20 ~ 70℃ | |
| Relative Humidity | 10 to 95% RH (non-condensing) | |
-
