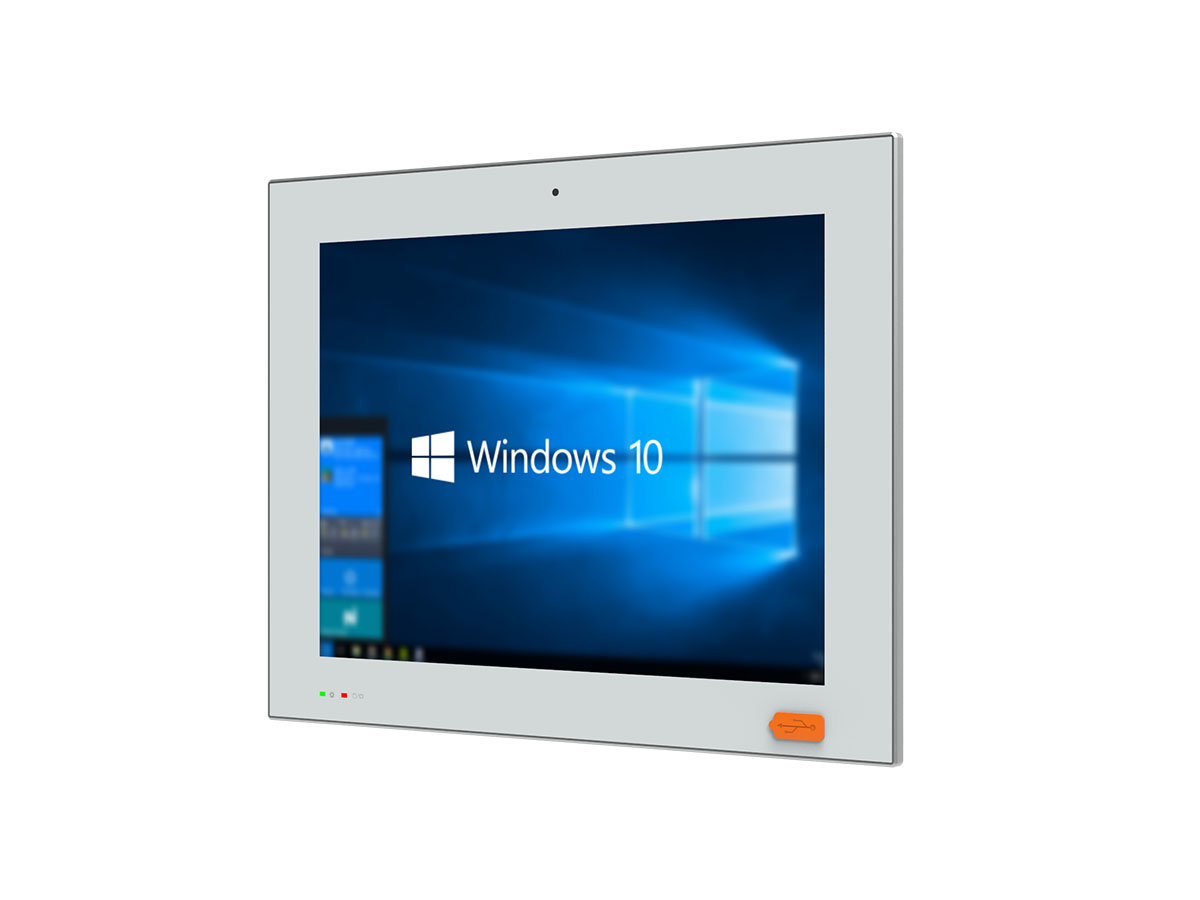

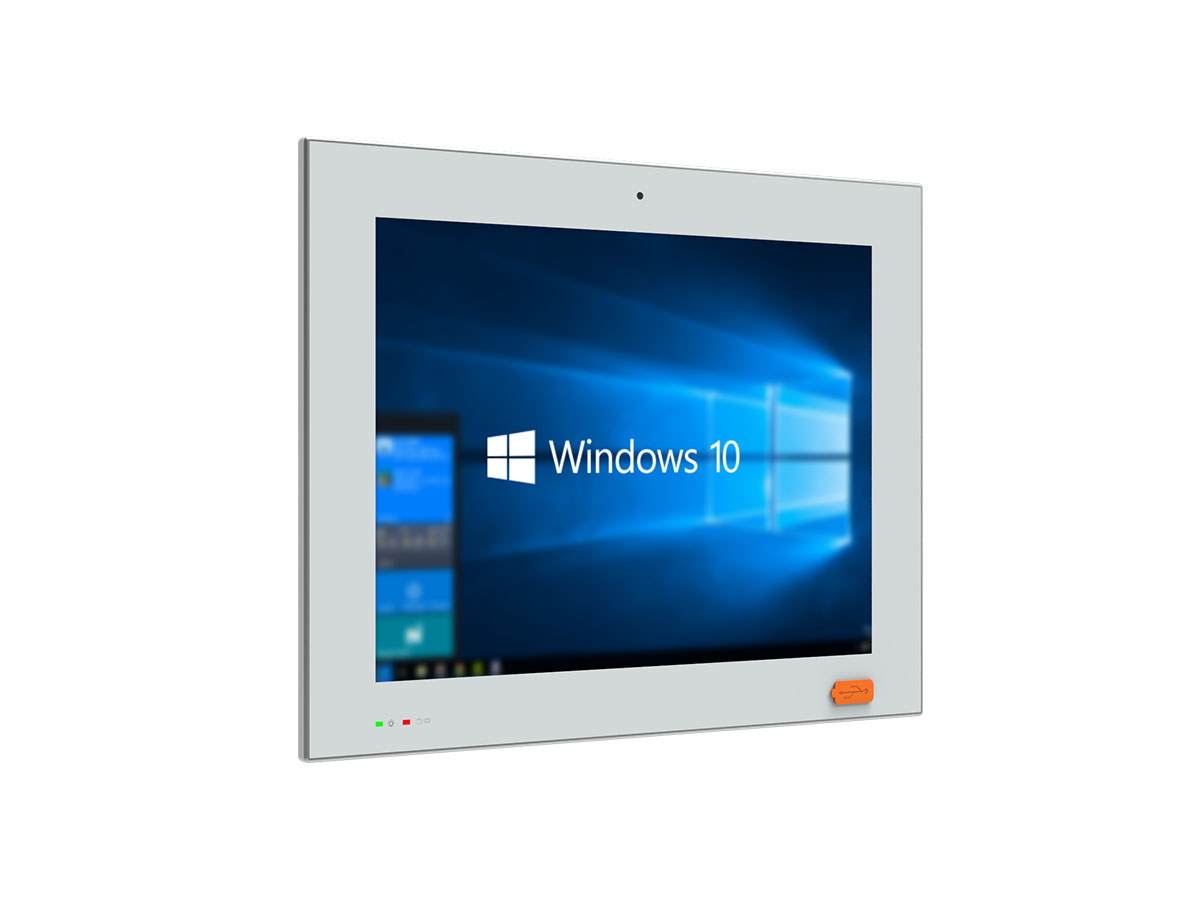

阿普奇 PLxxxCQ-E7L-Q670 | 8USB無風扇 12.1-27寸10點電容觸控一體機
產品描述
阿普奇 PLxxxCQ-E7L-Q670 系列是阿普奇模塊化無風扇工業觸控一體機產品線的旗艦系列。該產品隸屬于阿普奇工業一體機（PL系列），采用全屏電容觸摸屏設計和無風扇被動散熱架構，提供從12.1英寸到27英寸共9種屏幕尺寸的模塊化選擇，涵蓋方屏與寬屏。
核心配置方面，搭載Intel 12/13/14代酷睿桌面處理器（TDP 35W, LGA1700），搭配企業級Intel Q670芯片組與2×SO-DIMM DDR4雙通道3200MHz內存（最大64GB）。網絡方面配備1×Intel i225-V 2.5GbE網卡 + 1×Intel i219-LM千兆網卡。存儲方面提供2×SATA3.0 2.5英寸硬盤位（含一路快拆設計）、1×M.2 Key-M（PCIe Gen4 x4 + SATA3.0, NVMe/SATA自動識別）和1×M.2 Key-E（2230 Wi-Fi/BT）。
擴展系統是該系列的一大亮點：創新的aDoor模塊化擴展總線可靈活選配4×LAN/4×POE/6×COM/16×GPIO擴展卡，2×Mini PCIe（含Nano SIM卡槽）支持4G/5G通信擴展。前置面板集成了8路USB3.2接口（含2路10Gbps Gen2x1和6路5Gbps Gen1x1）和4路COM口，同時提供了AT/ATX模式切換按鈕、OS恢復按鈕等運維便利設計。全系標配10點投射電容觸摸屏（透光率≥85%，硬度≥6H），前面板滿足IP65防護等級。
顯示系統提供HDMI1.4b、DP1.4a和內部LVDS共3路顯示輸出，DP1.4a最高支持4K@60Hz分辨率。無風扇被動散熱設計使12.1~15.6英寸型號可適應-20~60℃寬溫環境，并通過IEC 60068-2-64振動和IEC 60068-2-27沖擊認證。享受阿普奇3年超長質保和30分鐘快速響應服務。
|
Model |
PL121CQ-E7L | PL150CQ-E7L | PL156CQ-E7L | PL170CQ-E7L | PL185CQ-E7L | PL191CQ-E7L | PL215CQ-E7L | PL238CQ-E7L | PL270CQ-E7L | |
|
LCD |
Display Size | 12.1" | 15.0" | 15.6" | 17.0" | 18.5" | 19.0" | 21.5" | 23.8" | 27.0" |
| ? | Display Type | XGA TFT-LCD | XGA TFT-LCD | FHD TFT-LCD | SXGA TFT-LCD | WXGA TFT-LCD | WXGA TFT-LCD | FHD TFT-LCD | FHD TFT-LCD | FHD TFT-LCD |
| ? | Max.Resolution | 1024 x 768 | 1024 x 768 | 1920 x 1080 | 1280 x 1024 | 1366 x 768 | 1440 x 900 | 1920 x 1080 | 1920 x 1080 | 1920 x 1080 |
| ? | Luminance | 350 cd/m2 | 300 cd/m2 | 350 cd/m2 | 250 cd/m2 | 250 cd/m2 | 250 cd/m2 | 250 cd/m2 | 250 cd/m2 | 300 cd/m2 |
| ? | Aspect Ratio | 4:3 | 4:3 | 16:9 | 5:4 | 16:9 | 16:10 | 16:9 | 16:9 | 16:9 |
| ? | Viewing Angle | 80/80/80/80° | 88/88/88/88° | 89/89/89/89° | 85/85/80/80° | 89/89/89/89° | 85/85/80/80° | 89/89/89/89° | 89/89/89/89 | 89/89/89/89 |
| ? | Max. Color | 16.7M | 16.7M | 16.7M | 16.7M | 16.7M | 16.7M | 16.7M | 16.7M | 16.7M |
| ? | Backlight Lifetime | 30,000 hr | 70,000 hr | 50,000 hr | 30,000 hr | 30,000 hr | 30,000 hr | 50,000 hr | 30,000 Hrs | 30,000 Hrs |
| ? | Contrast Ratio | 800:1 | 2000:1 | 800:1 | 1000:1 | 1000:1 | 1000:1 | 1000:1 | 1000:01:00 | 3000:01:00 |
|
Touchscreen |
Touch Type | Projected Capacitive Touch | ||||||||
| ? | Controller | USB signal | ||||||||
| ? | Input | Finger/Capacitive Touch Pen | ||||||||
| ? | Light Transmission | ≥85% | ||||||||
| ? | Hardness | ≥6H | ||||||||
|
Processor System |
CPU | Intel? 12/13/14th Generation Core / Pentium/ Celeron Desktop CPU | ||||||||
| ? | TDP | 35W | ||||||||
| ? | Socket | LGA1700 | ||||||||
| ? | Chipset | Q670 | ||||||||
| ? | BIOS | AMI 256 Mbit SPI | ||||||||
|
Memory |
Socket | 2 * Non-ECC SO-DIMM Slot, Dual Channel DDR4 up to 3200MHz | ||||||||
| ? | Max Capacity | 64GB, Single Max. 32GB | ||||||||
|
Graphics |
Controller | Intel? UHD Graphics | ||||||||
|
Ethernet |
Controller | 1 * Intel i219-LM 1GbE LAN Chip (LAN1, 10/100/1000 Mbps, RJ45) 1 * Intel i225-V 2.5GbE LAN Chip (LAN2, 10/100/1000/2500 Mbps, RJ45) |
||||||||
|
Storage |
SATA | 1 * SATA3.0, Quick release 2.5" hard disk bays (T≤7mm) 1 * SATA3.0, Internal 2.5" hard disk bays (T≤9mm, Optional) |
||||||||
| ? | M.2 | 1 * M.2 Key-M (PCle x4 Gen 4 + SATA3.0, NVMe/SATA SSD Auto Detect, 2242/2260/2280)
1 * M.2 Key-E (PCle x1 Gen 3 + USB 2.0, 2230) |
||||||||
|
Expansion Slots |
aDoor | 1 * aDoor Bus (Optional 4 * LAN/4 * POE/6 * COM/16 * GPIO expansion card) | ||||||||
| ? | Mini PCIe | 2 * Mini PCIe (PCIe3.0 x1 + USB 2.0, with 1*Nano SIM Card) | ||||||||
|

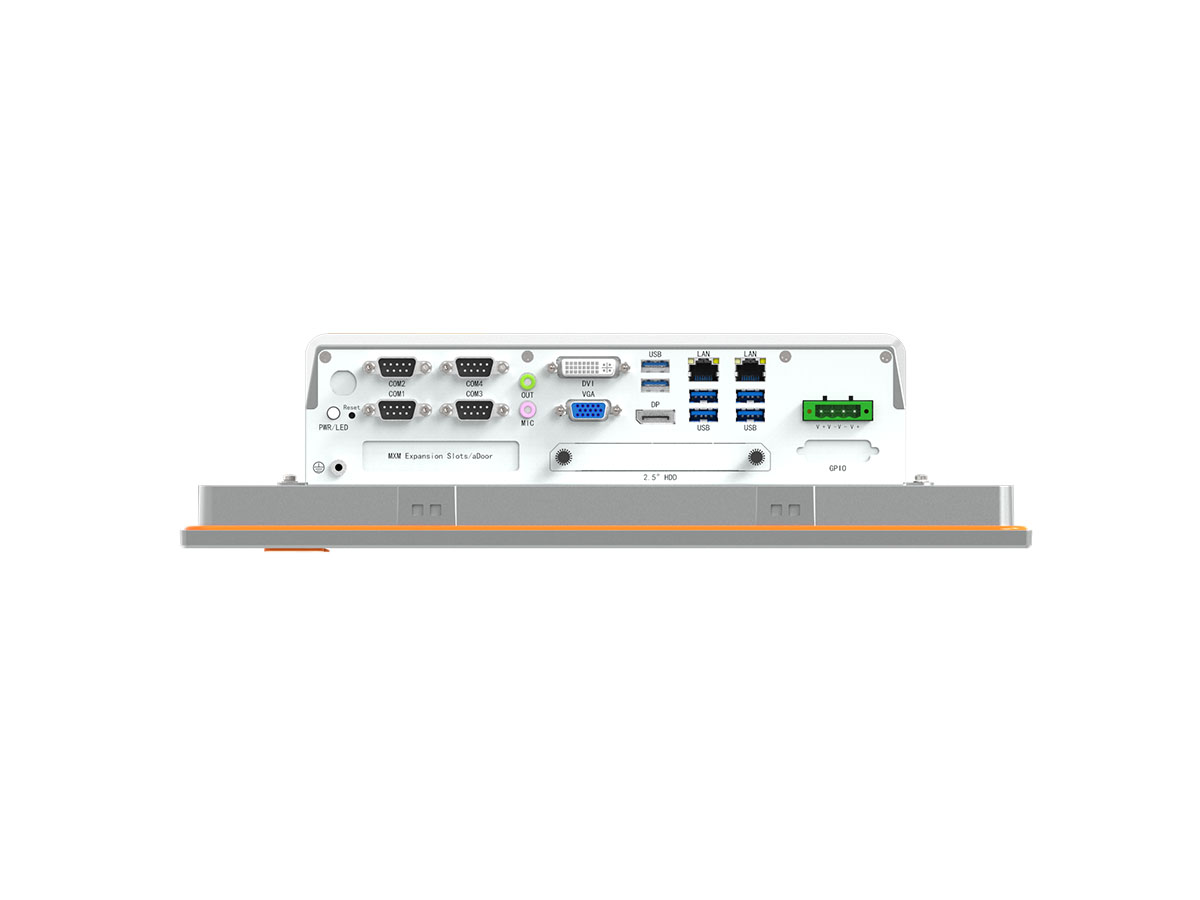

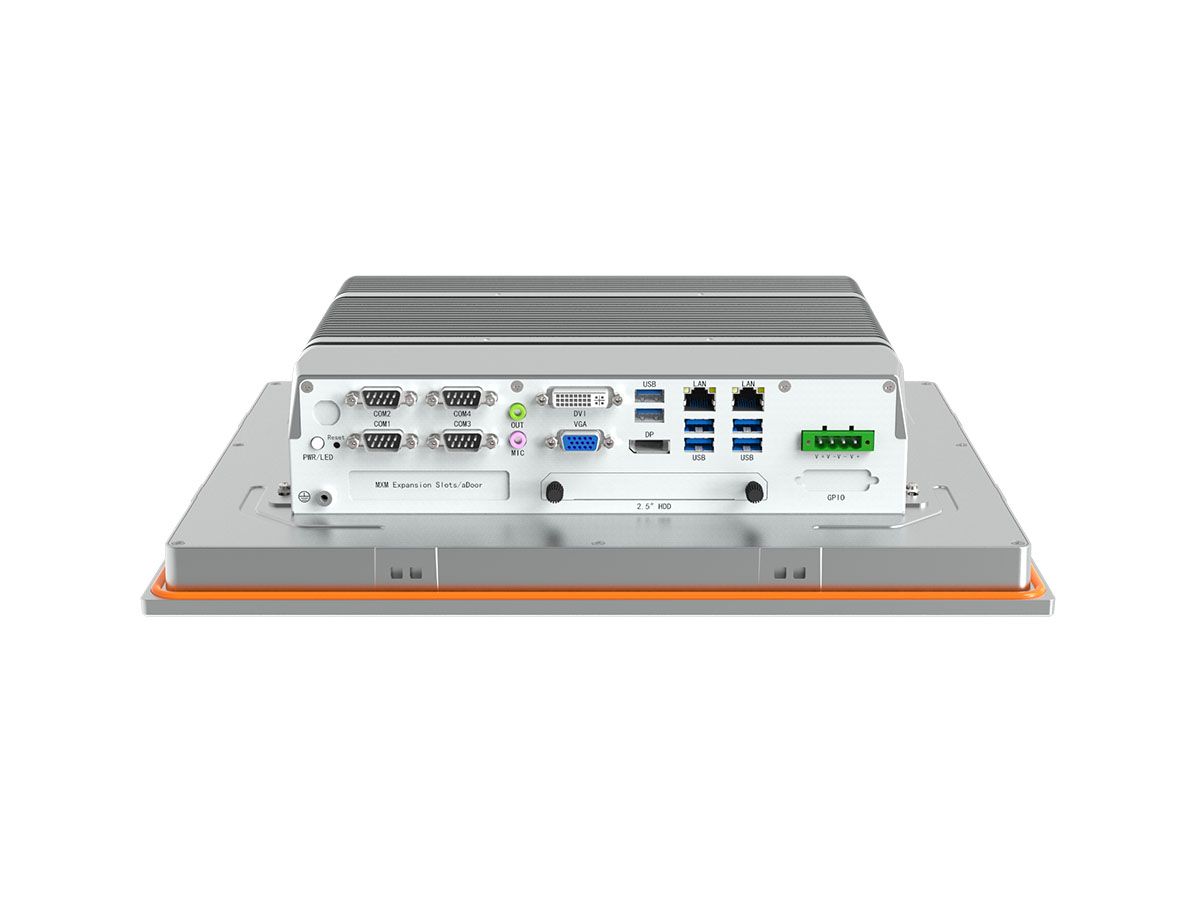

Front I/O |
Ethernet | 2 * RJ45 | ||||||||
| ? | USB | 2 * USB3.2 Gen2x1 (Type-A, 10Gbps) 6 * USB3.2 Gen 1x1 (Type-A, 5Gbps) |
||||||||
| ? | Display | 1 * HDMI1.4b: max resolution up to 4096*2160 @ 30Hz 1 * DP1.4a: max resolution up to 4096*2160 @ 60Hz |
||||||||
| ? | Audio | 2 * 3.5mm Jack (Line-Out + MIC) | ||||||||
| ? | Serial | 2 * RS232/485/422 (COM1/2, DB9/M, Full Lanes, BIOS Switch) 2 * RS232 (COM3/4, DB9/M, Full Lanes) |
||||||||
| ? | Button | 1 * Power Button + Power LED 1 * AT/ATX Button 1 * OS Recover Button 1 * System Reset Button |
||||||||
|
Rear I/O |
Antenna | 4 * Antenna hole | ||||||||
| ? | SIM | 1 * Nano SIM card slots(SIM1) | ||||||||
|
Internal I/O |
USB | 6 * USB2.0 (wafer) | ||||||||
| ? | LCD | 1 * LVDS (wafer): LVDS Resolution up to 1920*1200 @ 60Hz | ||||||||
| ? | Front Panel | 1 * FPanel (PWR+RST+LED, wafer) | ||||||||
| ? | Audio | 1 * Audio (Header) 1 * Speaker (2-W (per channel)/8-Ω Loads, wafer) |
||||||||
| ? | Serial | 2 * RS232 (COM5/6, wafer) | ||||||||
| ? | GPIO | 1 * 16 bits DIO (8xDI and 8xDO, wafer) | ||||||||
| ? | LPC | 1 * LPC (wafer) | ||||||||
| ? | SATA | 3 * SATA 7P Connector, up to 600MB/s | ||||||||
| ? | SATA Power | 3 * SATA Power (wafer) | ||||||||
| ? | FAN | 1 * CPU FAN (wafer) 2 * SYS FAN (KF2510-4A) |
||||||||
|
Power Supply |
Type | DC, AT/ATX | ||||||||
| ? | Power Input Voltage | 9~36VDC, P≤240W 18~60VDC, P≤400W |
||||||||
| ? | Connector | 1 * 4Pin Connector, P=5.00/5.08 | ||||||||
| ? | RTC Battery | CR2032 Coin Cell | ||||||||
|
OS Support |
Windows | Windows 10/11 | ||||||||
| ? | Linux | Linux | ||||||||
|
Watchdog |
Output | System Reset | ||||||||
| ? | Interval | Programmable 1 ~ 255 sec | ||||||||
|

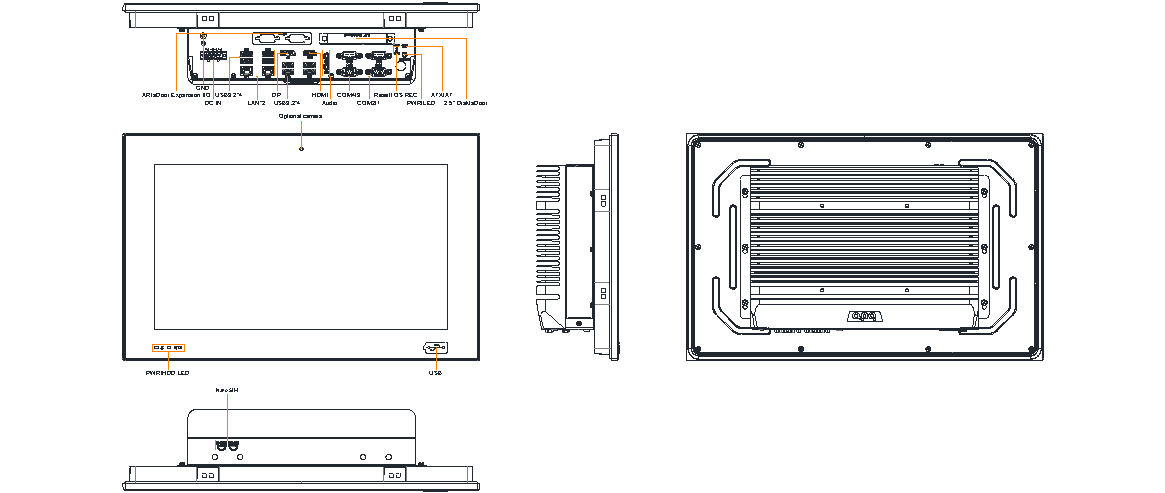

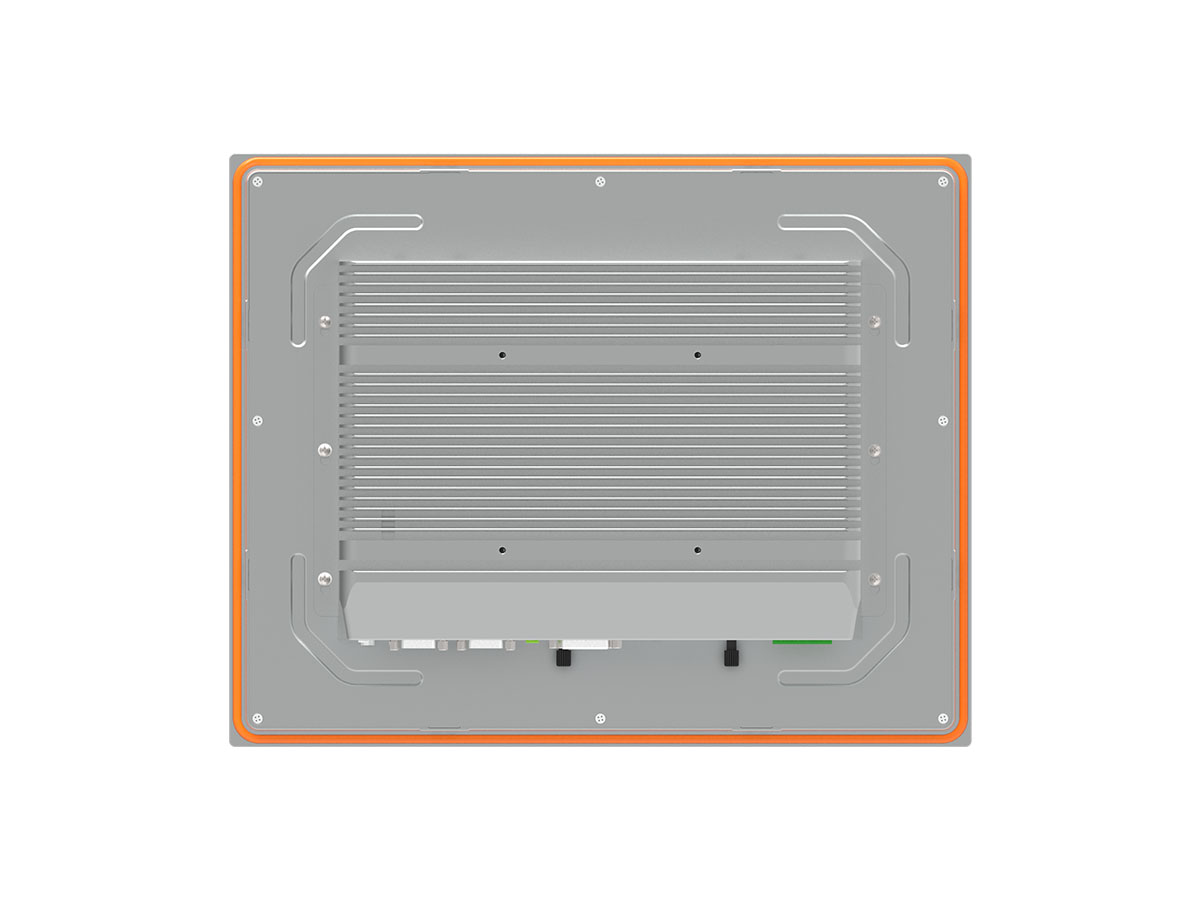

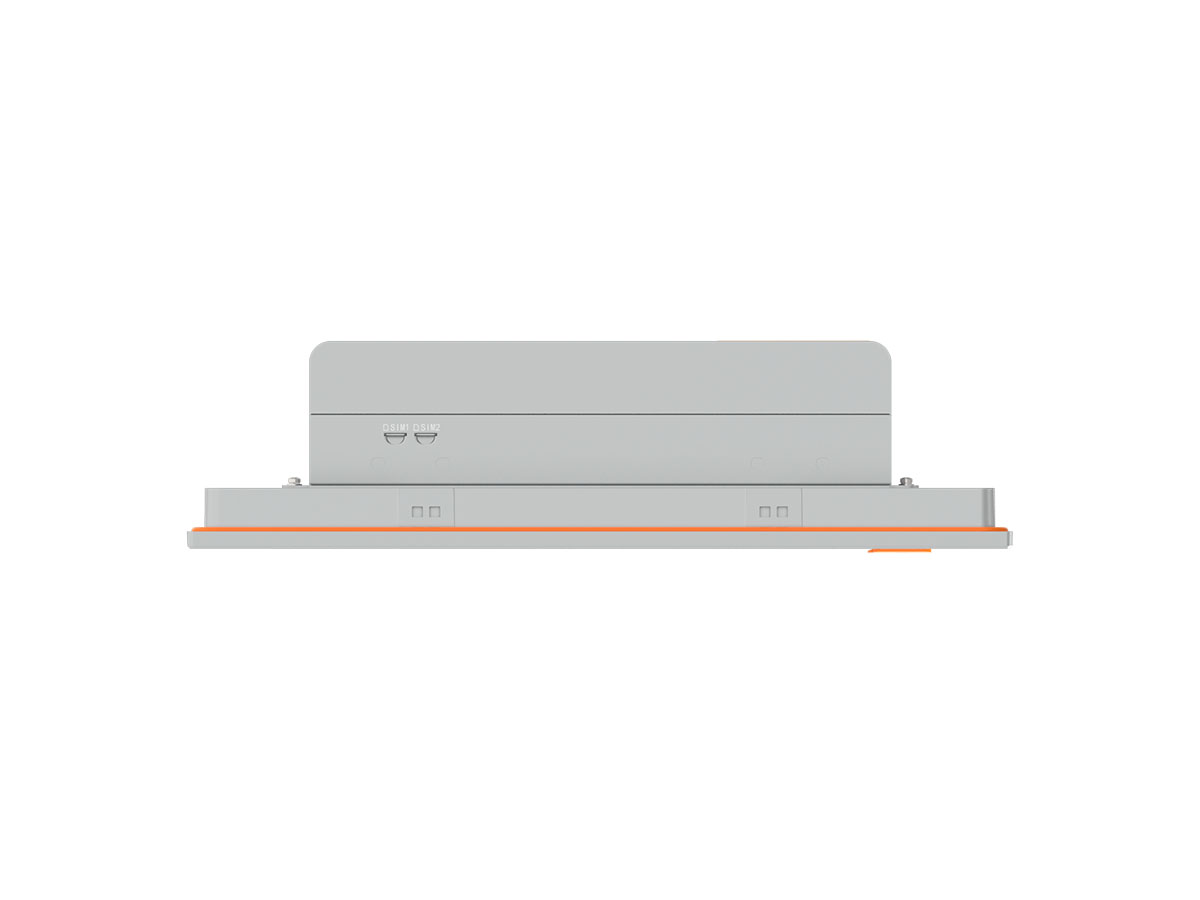

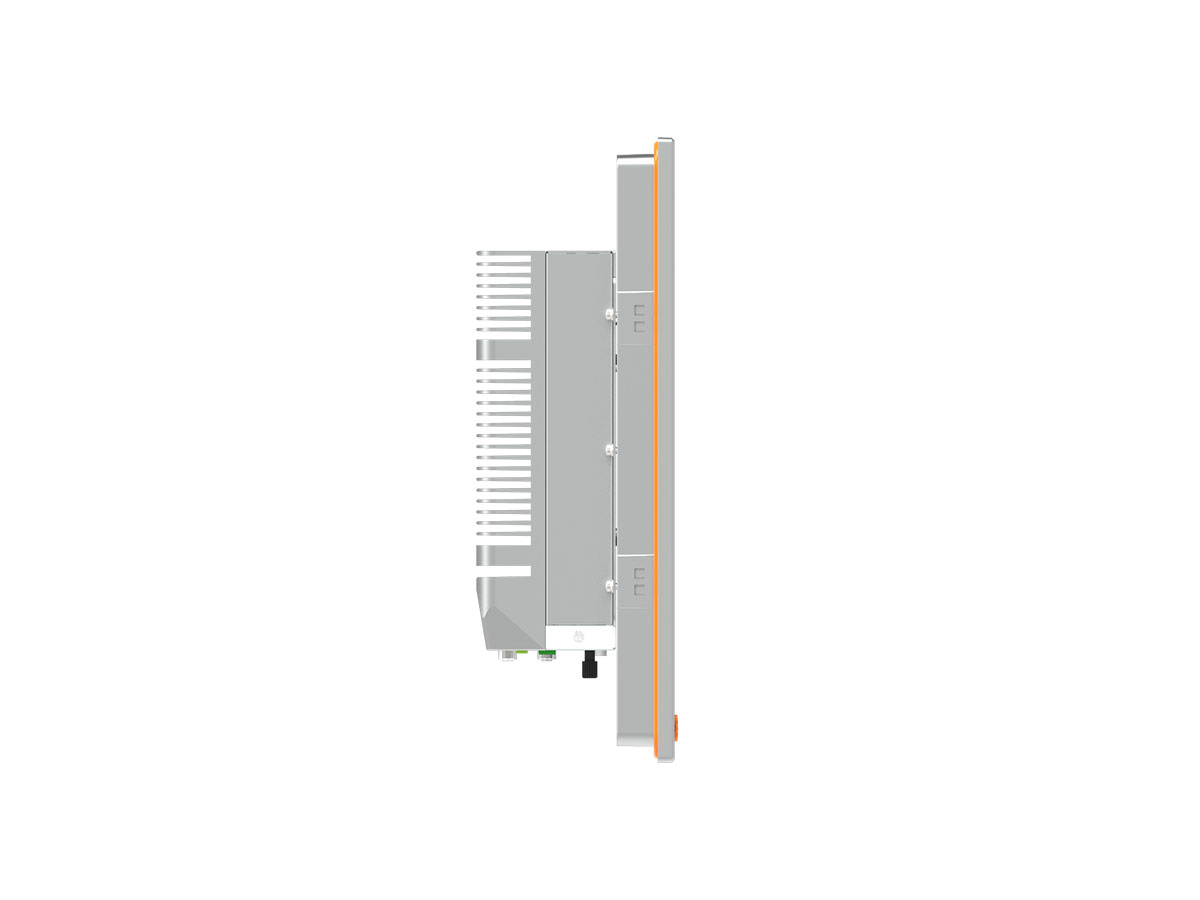

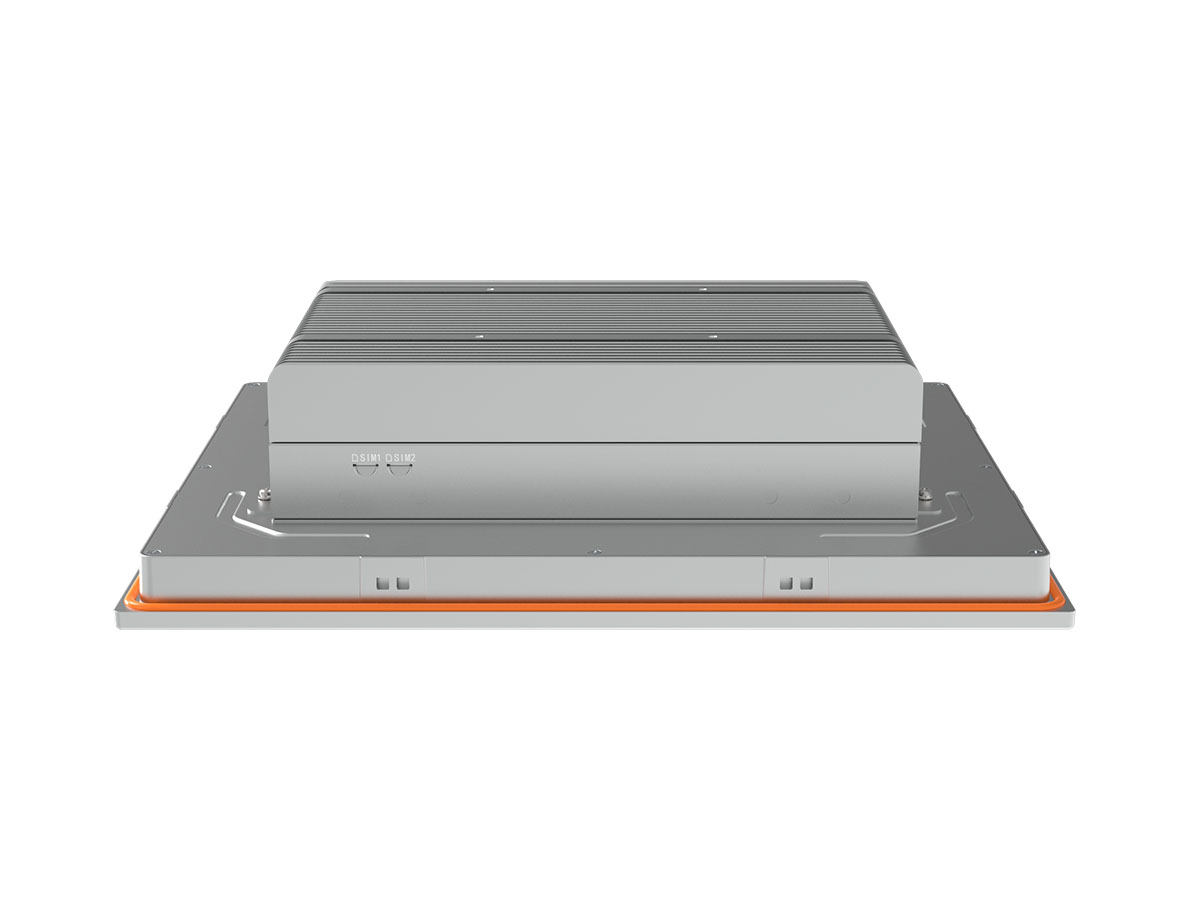

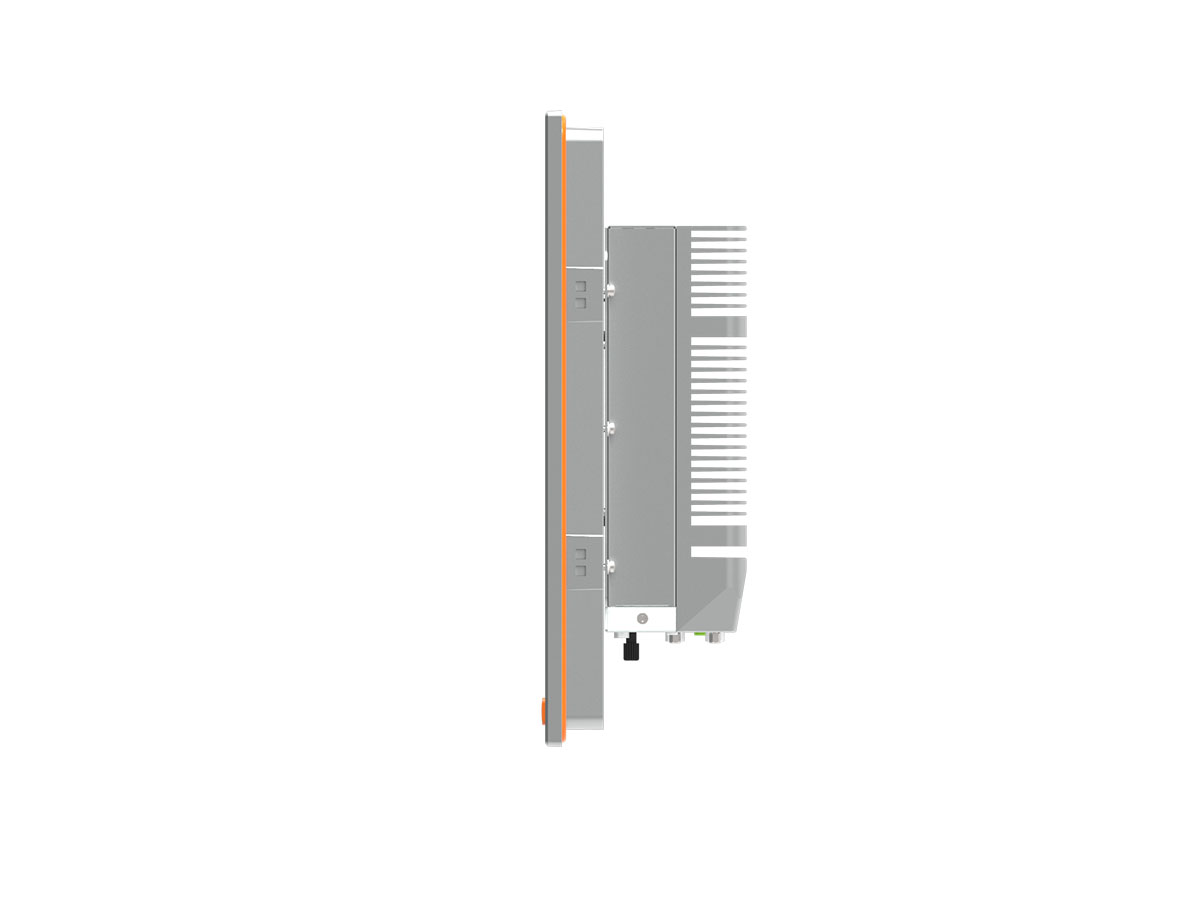

Mechanical |
Enclosure Material | Radiator: Aluminum alloy, Box: SGCC | ||||||||
| ? | Mounting | VESA, Embedded | ||||||||

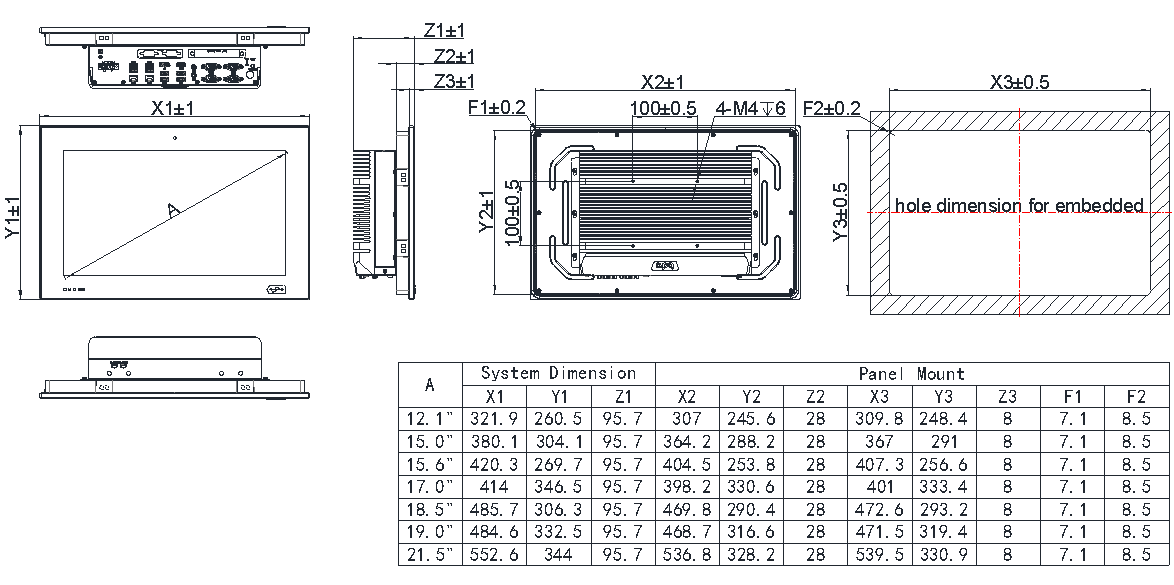

| ? | Dimensions (L * W * H, Unit: mm) |
321.9*260.5*95.7 | 380.1*304.1*95.7 | 420.3*269.7*95.7 | 414*346.5*95.7 | 485.7*306.3*95.7 | 484.6*332.5*95.7 | 552.6*344*95.7 | 586*358.4*95.7 | 663.2*401.8*95.7 |
| ? | Weight | Net: 6.6 kg Total: 8.1 kg |
Net: 8.0 kg Total: 9.5 kg |
Net: 7.9 kg Total: 9.6 kg |
Net: 8.8 kg Total: 10.3 kg |
Net: 8.7 kg Total: 10.2 kg |
Net: 10.0 kg Total: 11.5 kg |
Net: 9.6 kg Total: 11.1 kg |
Net: 11 kg Total: 12.5 kg |
Net: 12.1 kg Total: 13.6 kg |
|
Environment |
Heat Dissipation System | Fanless Passive Cooling | ||||||||
| ? | Operating Temperature | -20~60℃ | -20~60℃ | -20~60℃ | 0~50℃ | 0~50℃ | 0~50℃ | 0~50℃ | 0~50℃ | 0~50℃ |
| ? | Storage Temperature | -30~80℃ | -20~70℃ | -30~70℃ | -20~60℃ | -20~60℃ | -20~60℃ | -20~60℃ | -20~60℃ | -20~60℃ |
| ? | Relative Humidity | 10 to 95% RH (non-condensing) | ||||||||
| ? | Vibration During Operation | With SSD: IEC 60068-2-64 (1Grms@5~500Hz, random, 1hr/axis) | ||||||||
| ? | Shock During Operation | With SSD: IEC 60068-2-27 (15G, half sine, 11ms) | ||||||||
| ? | Certification | CE/FCC, RoHS | ||||||||
-
