阿普奇 IPC400-H81 | 4/5th經濟型 4U機架式工控機
產品描述

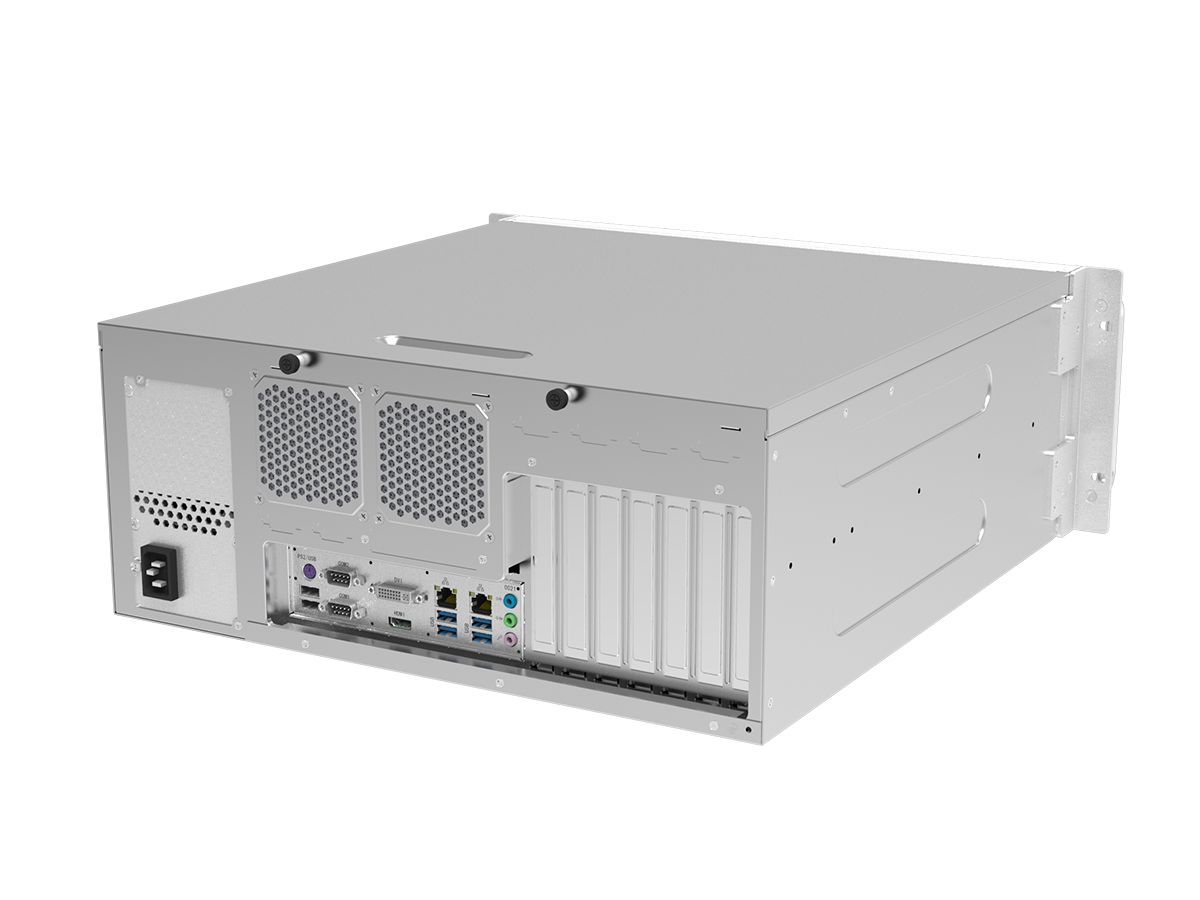

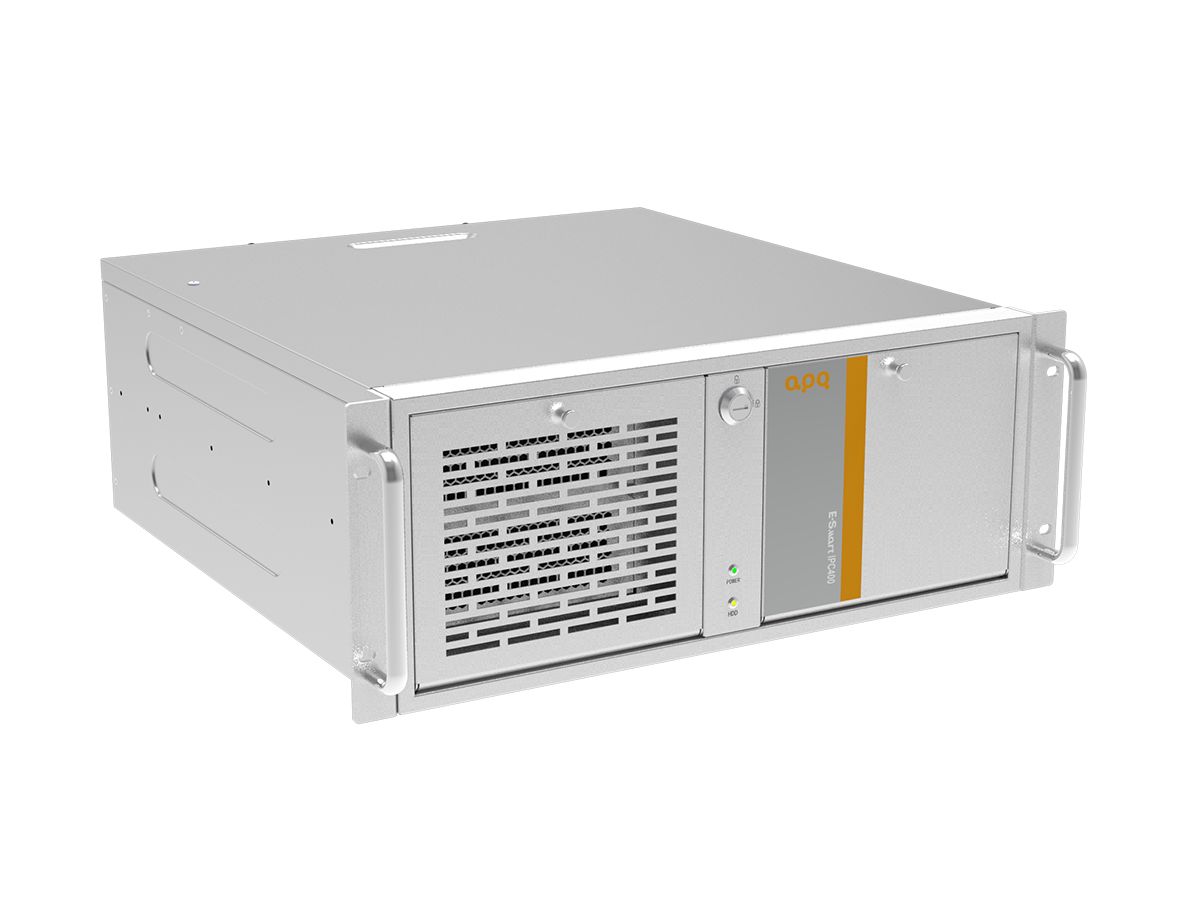

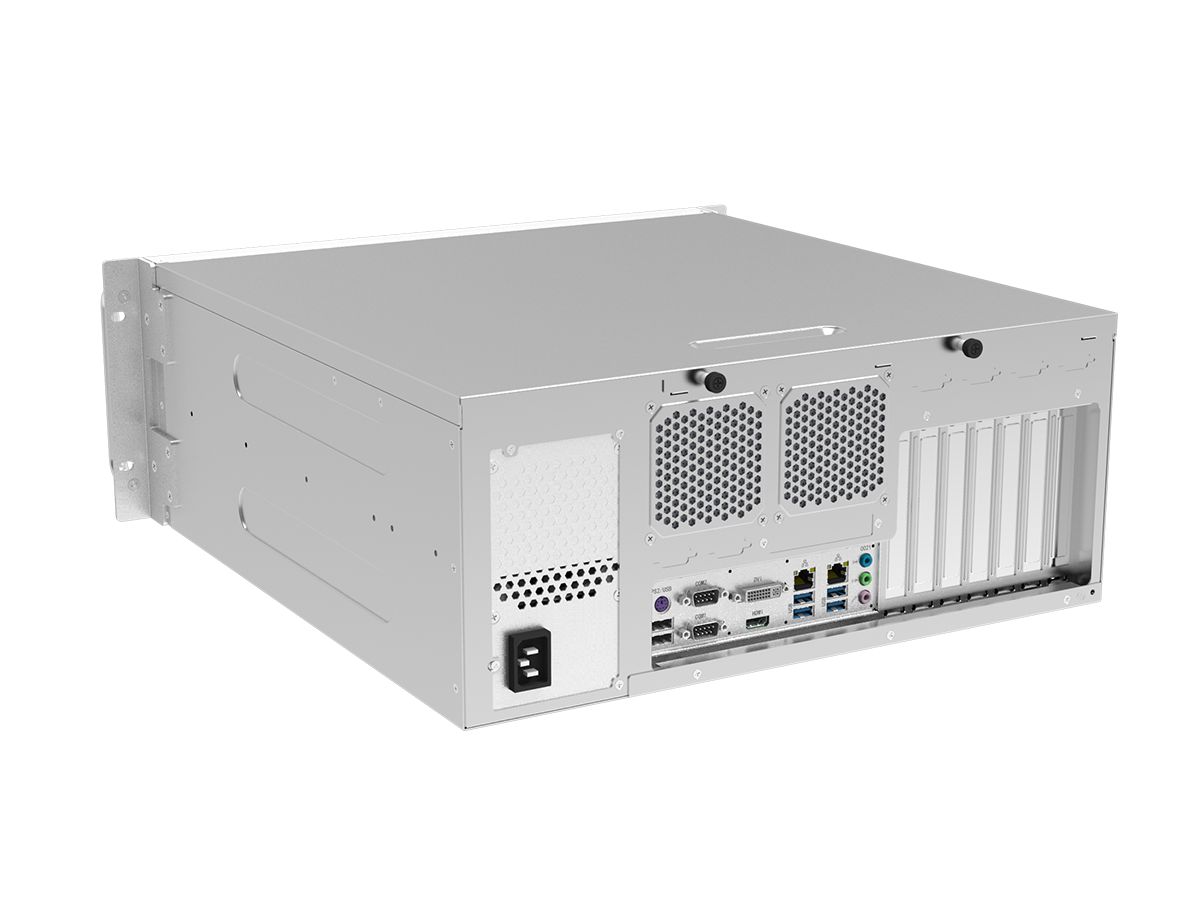

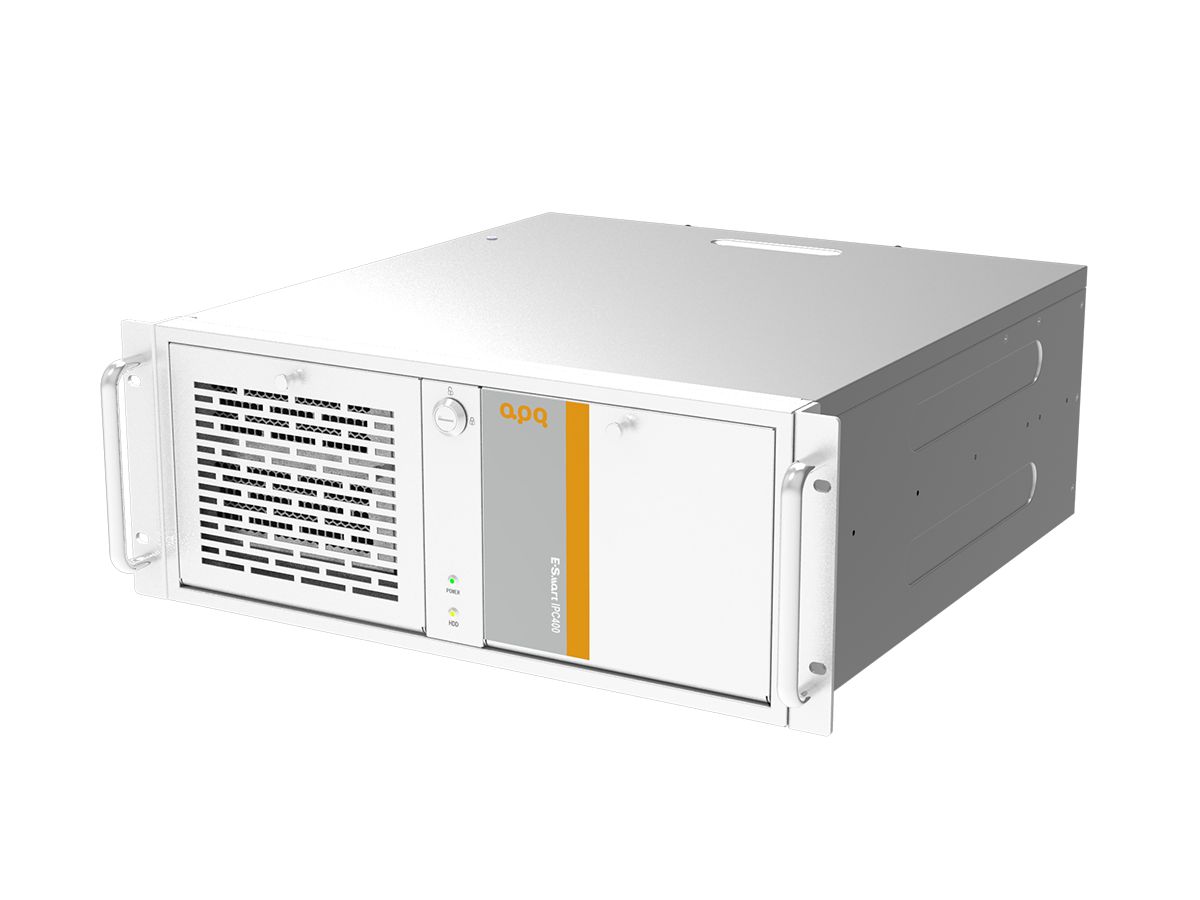

阿普奇 IPC400-H81 是IPC400系列中的經濟型4U上架式工控機型號。隸屬于阿普奇上架式工控機產品線（IPC400系列），采用標準19英寸4U機架式機箱，全部擴展槽位為全高設計，突破了2U機箱半高卡的限制。
核心配置方面，搭載Intel 4/5代酷睿/奔騰/賽揚桌面處理器（TDP 95W, LGA1150），搭配Intel H81芯片組與2×Non-ECC U-DIMM DDR3雙通道1600MHz內存（最大16GB）。網絡方面配備1×Intel i210-AT千兆網卡 + 1×Intel i218-LM/V千兆網卡。存儲方面提供1×SATA3.0 + 2×SATA2.0 + 1×M.2 Key-M（SATA SSD, 2242/2260/2280）。
擴展方面提供1×PCIe x16 (Gen3 x16) + 1×PCIe x4 (Gen2 x2) + 1×PCIe x1 (Gen2) + 4×PCI + 1×Mini PCIe（含SIM卡槽）共7個全高槽位，支持安裝標準尺寸運動控制卡、圖像采集卡和多串口卡。PWM智能風扇散熱和ATX電源方案確保4U空間的穩定散熱。
|
Model |
IPC400-H81 |
|
|
Processor System |
CPU | Support Intel??4/5th Generation Core / Pentium/ Celeron Desktop CPU |
| TDP | 95W | |
| Socket | LGA1150 | |
| Chipset | H81 | |
| BIOS | AMI 256 Mbit SPI | |
|
Memory |
Socket | 2 * Non-ECC U-DIMM Slot, Dual Channel DDR3 up to 1600MHz |
| Capacity | 16GB, Single Max. 8GB | |
|
Graphics |
Controller | Intel? UHD Graphics |
|
Ethernet |
Controller | 1 * Intel i210-AT GbE LAN Chip (10/100/1000 Mbps, RJ45)
1 * Intel i218-LM/V GbE LAN Chip (10/100/1000 Mbps, RJ45) |
|
Storage |
SATA | 1 * SATA3.0 7P Connector
2 * SATA2.0 7P Connector |
| M.2 | 1 * M.2 Key-M (SATA SSD, SATA 3.0, 2242/2260/2280) | |
|
Expansion Slots |
PCIe | 1 * PCIe x16 slot (Gen 3, x16 signal)
1 * PCIe x4 slot (Gen 2, x2 signal,?Default, co-lay with?Mini PCIe) 1 * PCIe x1 slot (Gen 2, x1 signal) |
| PCI | 4 * PCI slot | |
| Mini PCIe | 1 * Mini PCIe (PCIe x1 Gen 2 + USB2.0 (Opt., co-lay with PCIe x4 slot), with 1 * SIM Card) | |
|

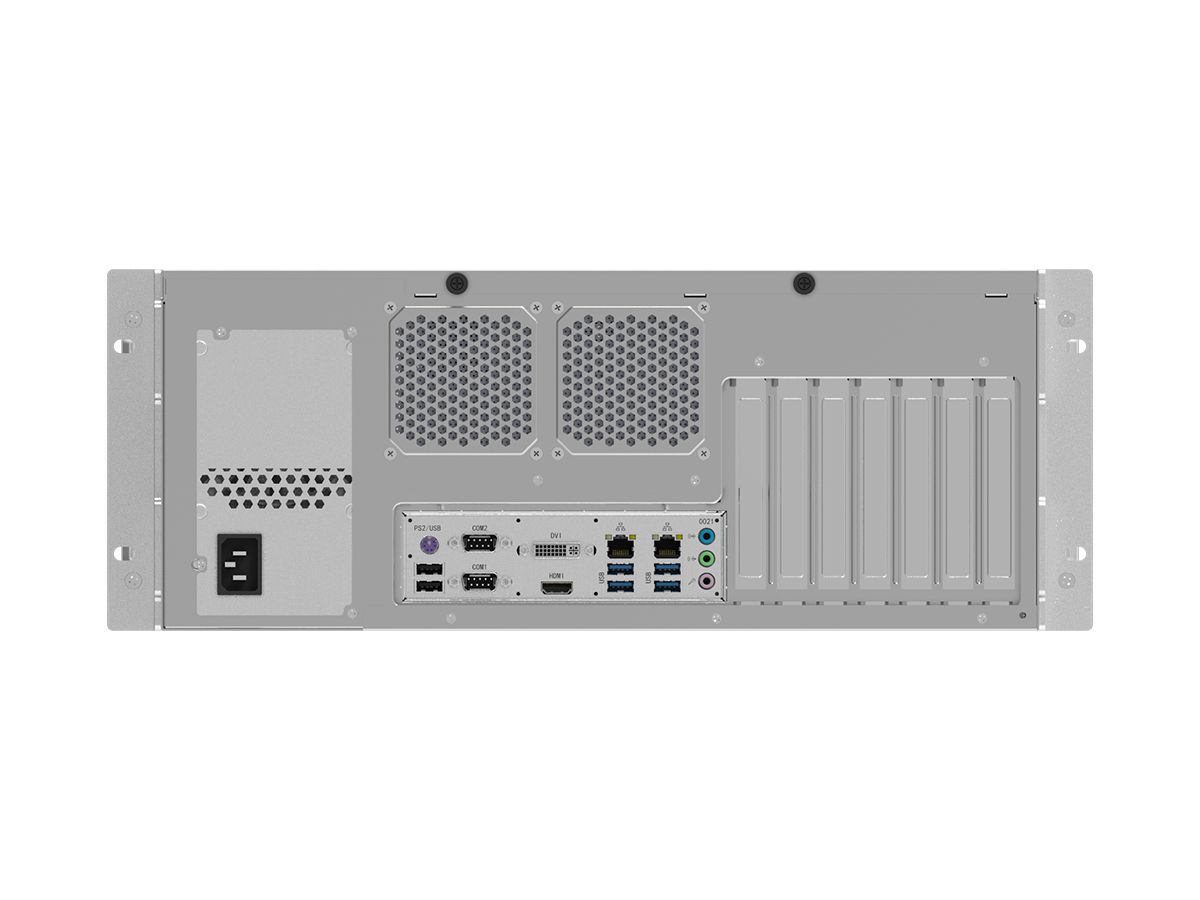

Front I/O |
Ethernet | 2 * RJ45 |
| USB | 2 * USB3.0 (Type-A)
4 * USB2.0 (Type-A) |
|
| PS/2 | 1 * PS/2 (Keyboard & Mouse) | |
| Display | 1 * DVI-D: max resolution up to 1920*1200 @ 60Hz 1 * HDMI1.4: max resolution up to 4096*2160 @ 24Hz |
|
| Audio | 3 * 3.5mm Jack (Line-out + Line-in + MIC) | |
| Serial | 2 * RS232/422/485 (COM1/2, DB9/M, Full Lanes, BIOS Switch) | |
|
Rear I/O |
USB | 2 * USB2.0 (Type-A) |
| Button | 1 * Power Button | |
| LED | 1 * Power status LED
1 * Hard drive status LED |
|
|
Internal I/O |
USB | 1 * USB2.0 (Vertical TYEP-A) |
| COM | 4 * RS232 (COM3/4/5/6, Header, Full Lanes) | |
| Display | 1 * VGA: max resolution up to 1920*1200 @ 60Hz (wafer)
1 * eDP: max resolution up to 1920*1200 @ 60Hz (Header) |
|
| Audio | 1 * Front Audio (Line-Out + MIC, Header)
1 * Speaker (3W (per channel) into a 4Ω Loads, wafer) |
|
| GPIO | 1 * 16 bits DIO (8DI and 8DO, wafer) | |
| SATA | 3 * SATA 7P Connector | |
| LPT | 1 * LPT (Header) | |
| FAN | 2 * SYS FAN (Header)
1 * CPU FAN (Header) |
|
|
Power Supply |
Type | ATX |
| Power Input Voltage | AC power supply, voltage and frequency shall be based on the ATX power supply provided | |
| RTC Battery | CR2032 Coin Cell | |
|
OS Support |
Windows | Windows 7/10/11 |
| Linux | Linux | |
|
Watchdog |
Output | System Reset |
| Interval | Programmable 1 ~ 255 sec | |
|
Mechanical |
Enclosure Material | SGCC |
| Dimensions | 482.6mm(L) * 464.5mm(W) * 177mm(H) | |
| Mounting | Shelf mounted installation | |
|
Environment |
Heat Dissipation System | PWM fan cooling |
| Operating Temperature | 0 ~ 50℃ | |
| Storage Temperature | -20 ~ 70℃ | |
| Relative Humidity | 10 to 95% RH (non-condensing) | |
-
