阿普奇KiWiBot系列 TER30X-A5 | 具身智能機器人小腦運動控制器/機器人控制器/Intel 12~13th Gen Core CPU

特點:

支持Intel? 12/13th Gen Core i3/i5/i7 -U/P/H, Support max 45W
標配5個獨立GbE接口
4個USB 5Gbps?Type-A，內置3個USB 2.0 wafer接口
默認4個RS232/RS485，8個GPIO
支持Wi-Fi、BT、4G/5G等無線、移動網絡擴展
智能風扇主動式散熱
12~28V直流寬壓供電

遠程管理
狀態監控
遠程運維
安全控制

聯系我們

掃碼即可添加微信，售前客服為您提供咨詢服務

阿普奇KiWiBot系列 TER30X-A5 具身智能機器人小腦運動控制器 / 機器人控制器

產品介紹

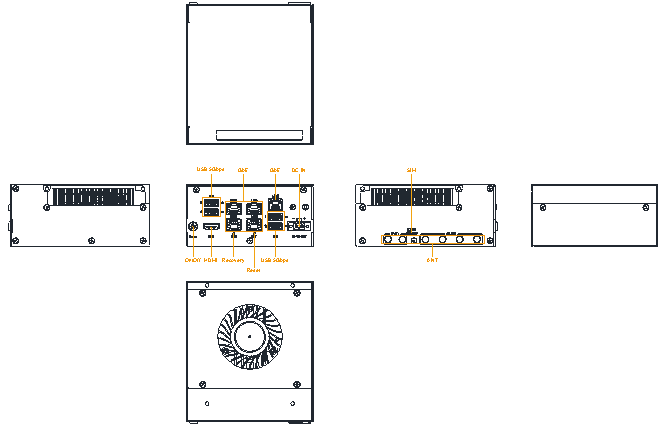

工程圖紙

下載產品資料

掃碼添加微信，獲取最新產品資料文件

Model		TER30X-A5
Core Modules	CPU	Support Intel^??12/13th Gen Core i3/i5/i7 -U/P/H, Support max 45W
Memory	Socket	1 * Non-ECC SO-DIMM Slot, Up to DDR5 5200 MT/s
?	Max Capacity	Max. 32GB
Graphics	Controller	Intel^??Iris^??Xe Graphics
Ethernet	Wired Module	1 * Intel^??i219-V (10/100/1000 Mbps)
?	?	1 * Intel^??i226-V (10/100/1000/2500 Mbps)
?	?	1 * Intel^??i350-AM4 (10/100/1000 Mbps)
Storage	M.2	1 * M.2 Key-M Slot (NVMe SSD, 2280)
Expansion Slots	M.2	1 * M.2 Key-B?Slot?(USB 5Gbps +?USB 2.0, 3052, with 1 * Nano?SIM Card?Slot)
?	?	1 * M.2 Key-E?Slot (PCIe?x1 +?USB 2.0)
Front I/O	Ethernet	5 * GbE (RJ45)
?	USB	4 * USB 5Gbps (Type-A)
?	Display	1 * HDMI: Resolution up to 4096*2304@30Hz (Type-A)
?	Button	1 * Power Button + Power LED
?	?	1 * System Reset button
?	?	1 * System Recover?button
?	Power Input	1 * Power Input (2P, P=5.00/5.08, Terminal Block)

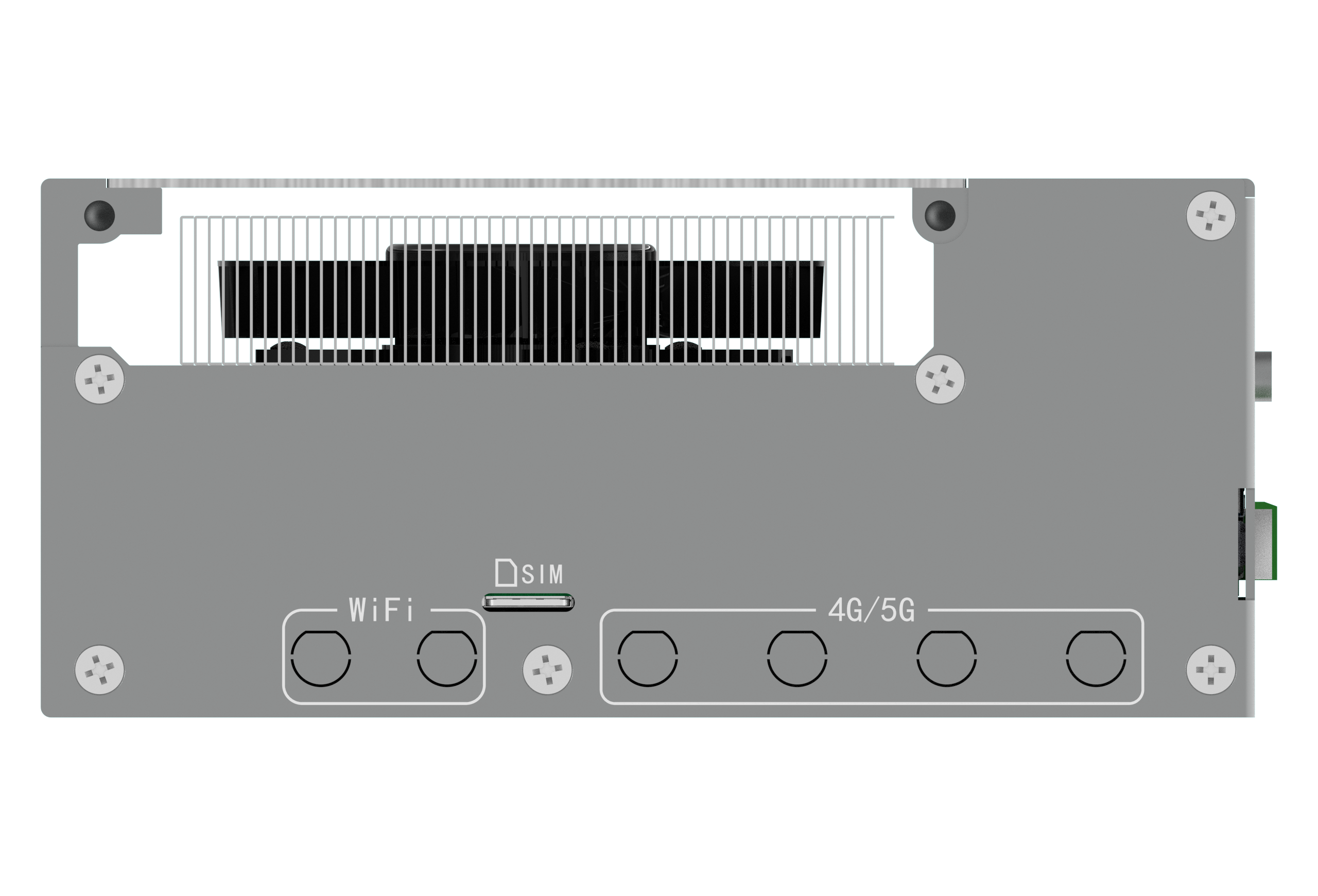

Side I/O	SIM	1 * Nano?SIM Card Slots
Internal I/O	Front Panel	1 * Front Panel (Power + Reset + Recovery, wafer)
?	Ethernet	1 * GbE (wafer)
?	FAN	1 * System Fan (wafer)
?	GPIO	8bit?GPIO (OS Configurable DI/DO and H/L, wafer)
?	Serial	4 * RS232/485 (Jumper Switch, wafer)
?	Audio	1 * Audio?(Line_Out + Mic) (wafer)
?	USB	3 * USB 2.0 (wafer)
Power Supply	Type	AT/ATX
?	Power Input Voltage	12 ~ 28V DC
?	Connector	1 * Power Input Connector (2P, P=5.08mm, Terminal Block)
?	RTC Battery	CR2032 Coin Cell
OS Support	Linux	Ubuntu?22.04
Mechanical	Enclosure Material	Aluminum alloy
?	Dimensions	118.2mm(L) * 130mm(W)?* 57.6mm(H)
?	Mounting	Bracket Mounting

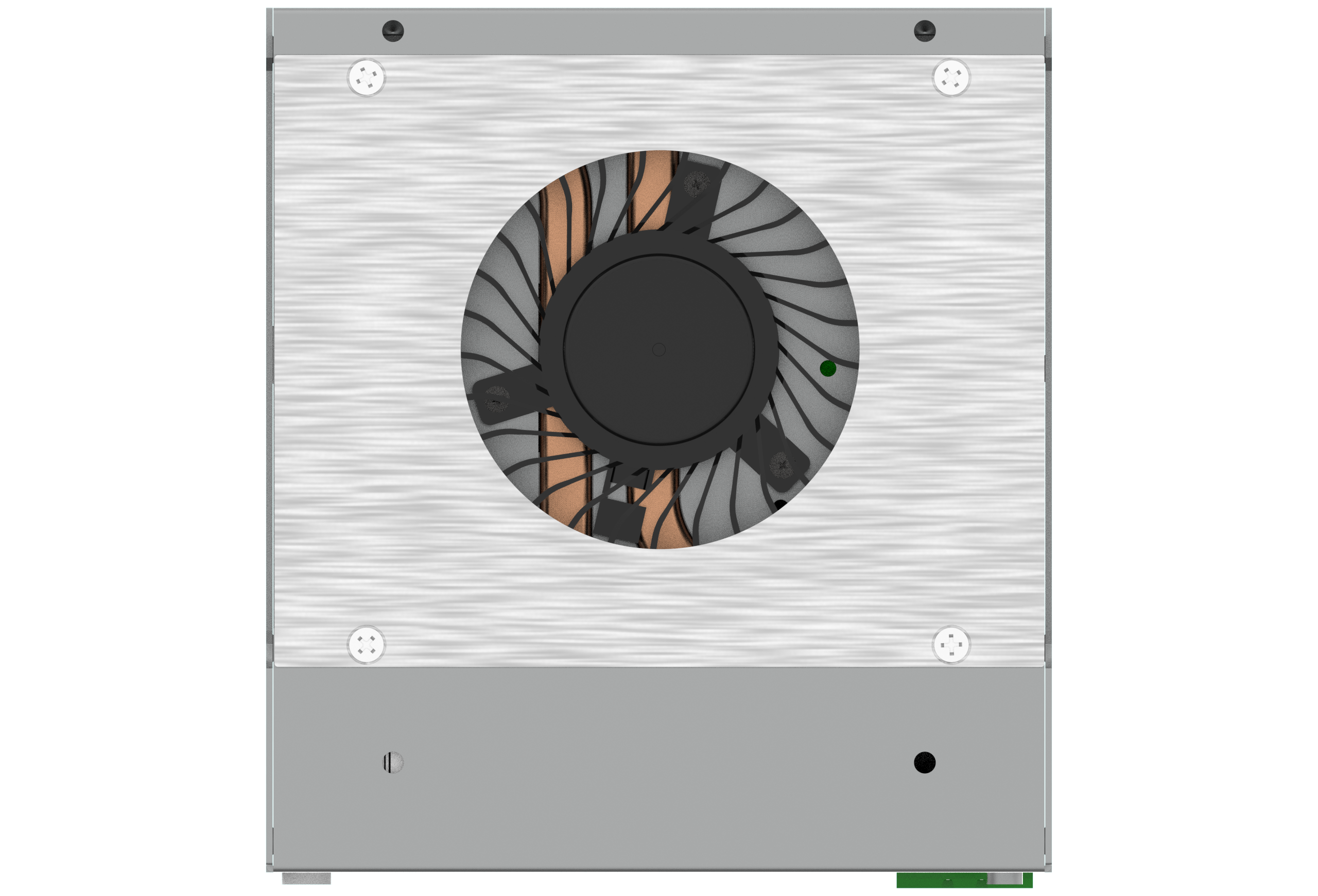

Environment	Heat Dissipation System	Active Fan Cooling
?	Operating Temperature	-20~50℃?with 0.7m/s (Industrial SSD)
?	Storage Temperature	-40~80℃?(Industrial SSD)
?	Relative Humidity	10 to 95% RH (non-condensing)
?	Vibration During Operation	3Grms@5~500Hz, random, 1hr/axis?(Industrial SSD)
?	Shock During Operation	15G, half sine, 11ms, ±X/Y/Z, 3 shocks/axis?(Industrial SSD)
